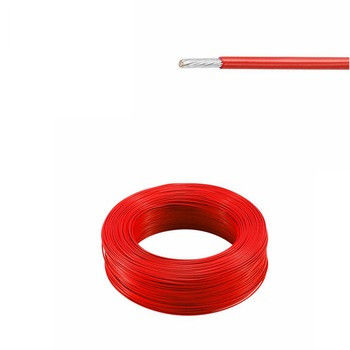

UL10362 PFA Insulation Flexible Electrical Wire Nickel Plated Copper

  • UL10362 PFA Insulation Flexible Electrical Wire Nickel Plated Copper
  • UL10362 PFA Insulation Flexible Electrical Wire Nickel Plated Copper
Place of Origin GuangDong,China
Brand Name MYSUN
Certification UL
Model Number UL10362
Minimum Order Quantity 3050meter
Price USD+0.02-0.67+$
Packaging Details 100m/roll,305m/roll
Delivery Time 7-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 850000+Meter+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UL10362 PFA Insulation Heating Resistance Electric Wire Color All Colors
Conductor Nickel-plated Copper Insulation PFA
Rated Voltage 600V Rated Temperature 250C
Sample Conventional Sample Free Packing 100m/roll,305m/roll
Producing Experience 20 Years Delivery Time 7-15 Days
Highlight

UL10362 Flexible Electrical Wire

,

PFA Insulation Flexible Electrical Wire

,

Nickel Plated Copper PFA Insulated Cable
Leave a Message
Product Description

UL 10362 PFA Wire 250C Heat Resistant electric wire



Specifications:

Nominal voltage: 600V

Temperature range: 250C

Standard: UL 758

Conductor: Nickel-plated copper wire

Insulation:PFA



Lead Time :

Quantity(Meters) 1 - 6100 >6100
Est. Time(days) 7 To be negotiated



Conductor Insulation Max.cond Unit Length
resistance (m)(Ft)
Size Construction Diameter Nominal Thickness Diameter (Ω/km)
(AWG) (No./mm) (mm) (mm) (mm)
32 7/0.08 0.24 0.35 0.94 563 610/2000
30 7/0.10 0.30 0.35 1.00 361 610/2000
28 7/0.12 0.36 0.35 1.08 227 610/2000
26 7/0.16 0.48 0.35 1.18 143 610/2000
24 7/0.20 0.60 0.35 1.30 89.3 610/2000
22 19/0.15 0.75 0.35 1.45 56.4 305/1000
20 19/0.185 0.93 0.35 1.63 35.2 305/1000
18 19/0.235 1.17 0.35 1.87 22.2 305/1000
16 19/0.30 1.50 0.35 2.20 14 305/1000
14 19/0.37 1.85 0.35 2.55 8.78 305/1000
12 19/0.47 2.35 0.35 3.05 5.53 305/1000
10 37/0.43 3.00 0.35 3.70 3.476 305/1000
8 37/0.54 3.78 0.51 4.80 2.16 customized
7 37/0.60 4.20 0.51 5.22 1.716
6 37/0.68 4.76 0.51 5.78 1.361
5 37/0.76 5.32 0.80 6.92 1.079
4 37/0.86 6.02 0.80 7.62 0.8859
3 7/2.21 6.63 0.80 8.23 0.6788
2 7/2.48 7.44 0.80 9.04 0.5384
1 7/2.78 8.34 1.20 10.74 0.4268
0 7/3.20 9.60 1.20 12.00 0.3367
2/0 7/3.57 10.71 1.20 13.11 0.267
3/0 7/3.94 11.82 1.20 14.22 0.2119
4/0 7/4.42 13.26 1.20 15.66 0.168



--20170321_01--20170321_08--20170321_02--20170321_03--20170321_04--20170321_05--20170321_06--20170321_012



Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
