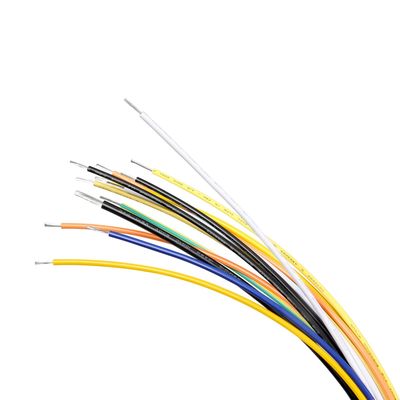

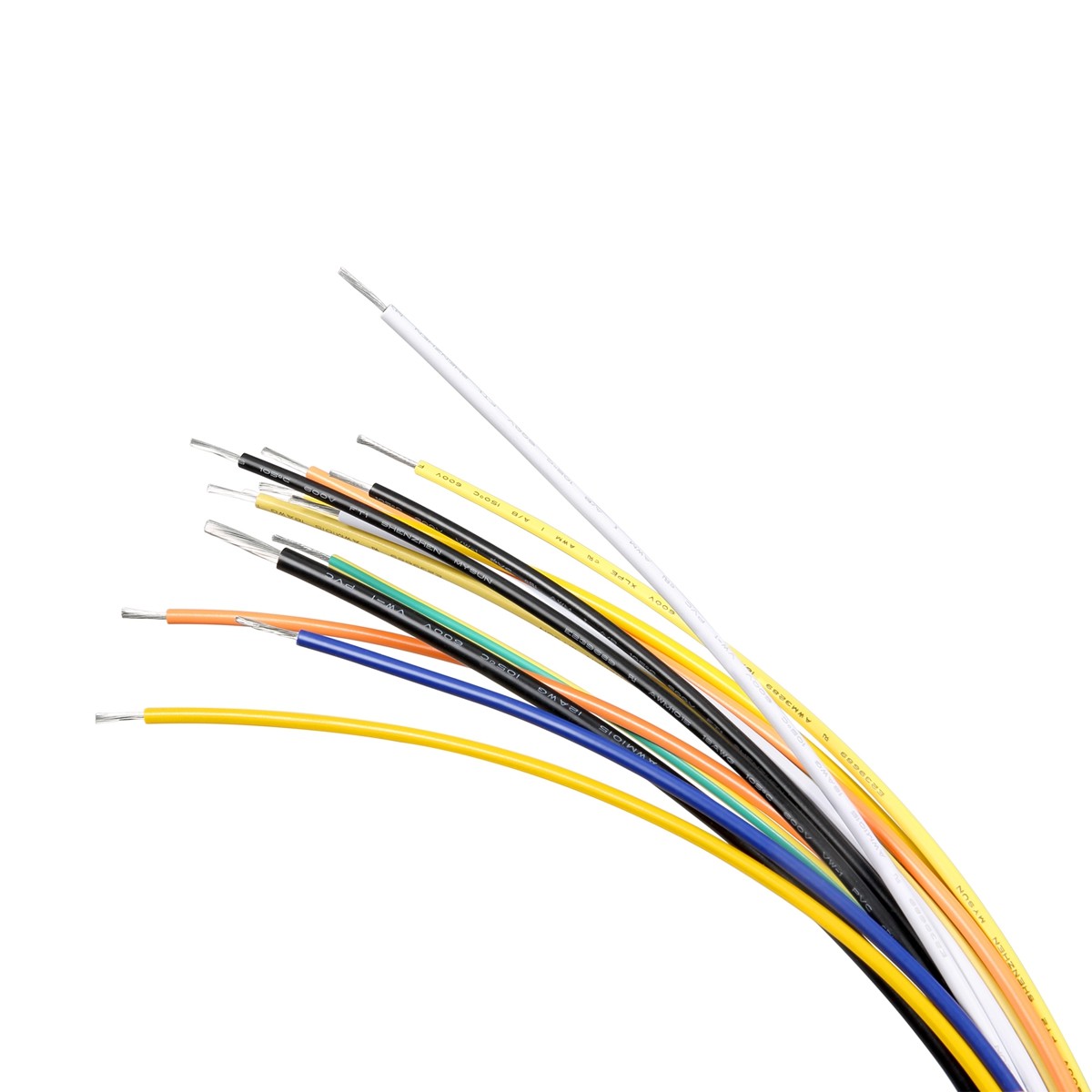

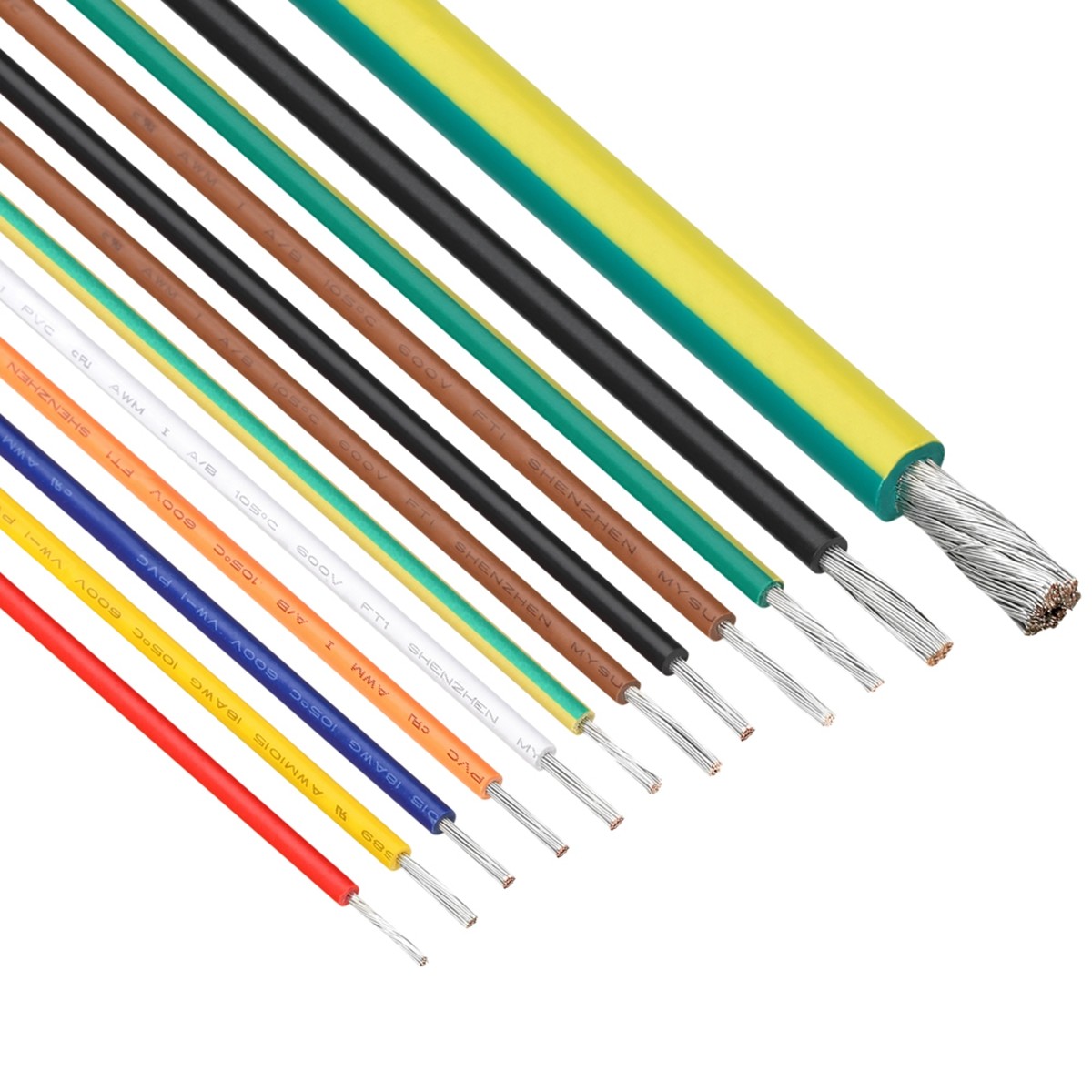

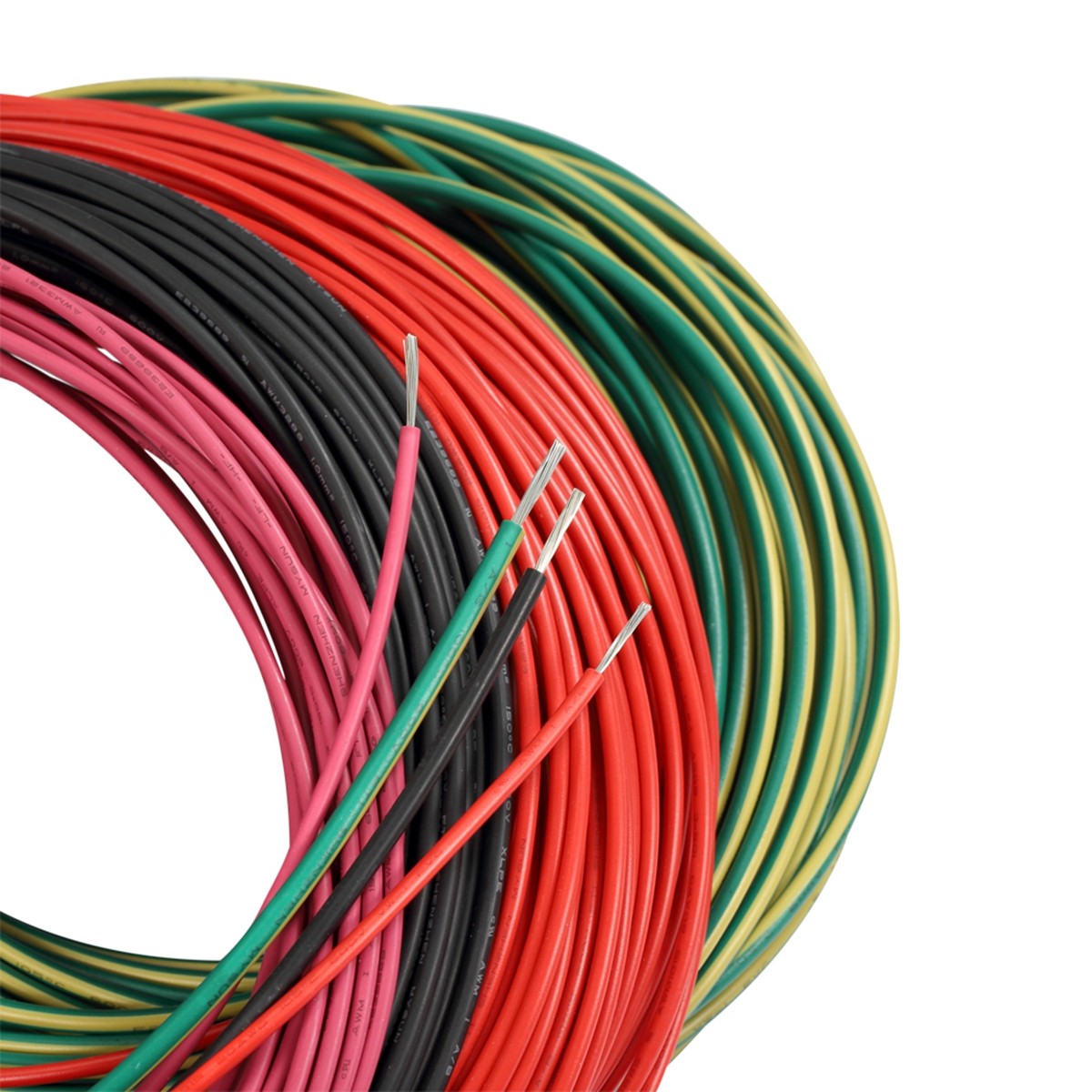

300V 32AWG PVC Insulated Electric Wire UL1015 UL Tinned Copper

  • 300V 32AWG PVC Insulated Electric Wire UL1015 UL Tinned Copper
  • 300V 32AWG PVC Insulated Electric Wire UL1015 UL Tinned Copper
  • 300V 32AWG PVC Insulated Electric Wire UL1015 UL Tinned Copper
  • 300V 32AWG PVC Insulated Electric Wire UL1015 UL Tinned Copper
Place of Origin Guangdong ,China
Brand Name MYSUN
Certification UL
Model Number UL1015
Minimum Order Quantity 1000M
Price USD 0.02-0.8/M
Packaging Details 305M/roll,610M/roll
Delivery Time 5-10 working days
Payment Terms T/T, Western Union, L/C
Supply Ability 1 million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name PVC Wire Conductor Tinned Copper
Insulation PVC Rated Temperature 80C
Rated Voltage 300V Standard UL758
Sizes 16-32AWG Color White Black Red Yellow Blue Black Brown
MOQ 1000meters Certificates UL Certification
Highlight

32AWG PVC Insulated Electric Wire

,

300V PVC Insulated Electric Wire

,

UL1015 Tinned Copper Wire
Leave a Message
Product Description

Tinned Copper Stranded Conductor Single Core Electrical wires and cables UL1007



Technical Data:

*Insulation:PVC

*Rated Voltage:300V

*Rated Temperature Range:80℃

*Insulation thickness:0.40MM

*Conductor:Tin-coated Copper Strand Wires



Characteristic:



PVC insulated material,excellent heat resistance and mechanical characters,easy stripping & cutting.

Resistance acids,alkalis,oils,moisture and mildew.



Product demension:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
30 7/0.10 0.30 0.80 1.90 347 305/1000
28 7/0.127 0.38 1.98 218
26 7/0.16 0.48 2.08 138
24 11/0.16 0.61 2.21 85.9
22 17/0.16 0.76 2.36 54.3
20 21/0.18 0.95 2.55 33.9
18 34/0.18 1.21 2.81 21.4
16 26/0.254 1.50 3.10 13.5
14 41/0.254 1.89 3.49 8.45
12 65/0.254 2.37 3.97 5.31
10 105/0.254 3.02 4.62 3.343
9 133/0.254 3.39 4.99 2.652
8 133/0.280 3.75 1.15 6.05 2.102
6 84/0.45 4.79 1.53 7.85 1.323
4 133/0.45 6.02 9.08 0.8315
2 212/0.45 7.60 10.66 0.5231





300V 32AWG PVC Insulated Electric Wire UL1015 UL Tinned Copper 0
