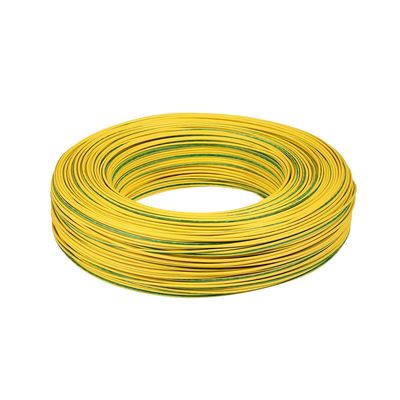

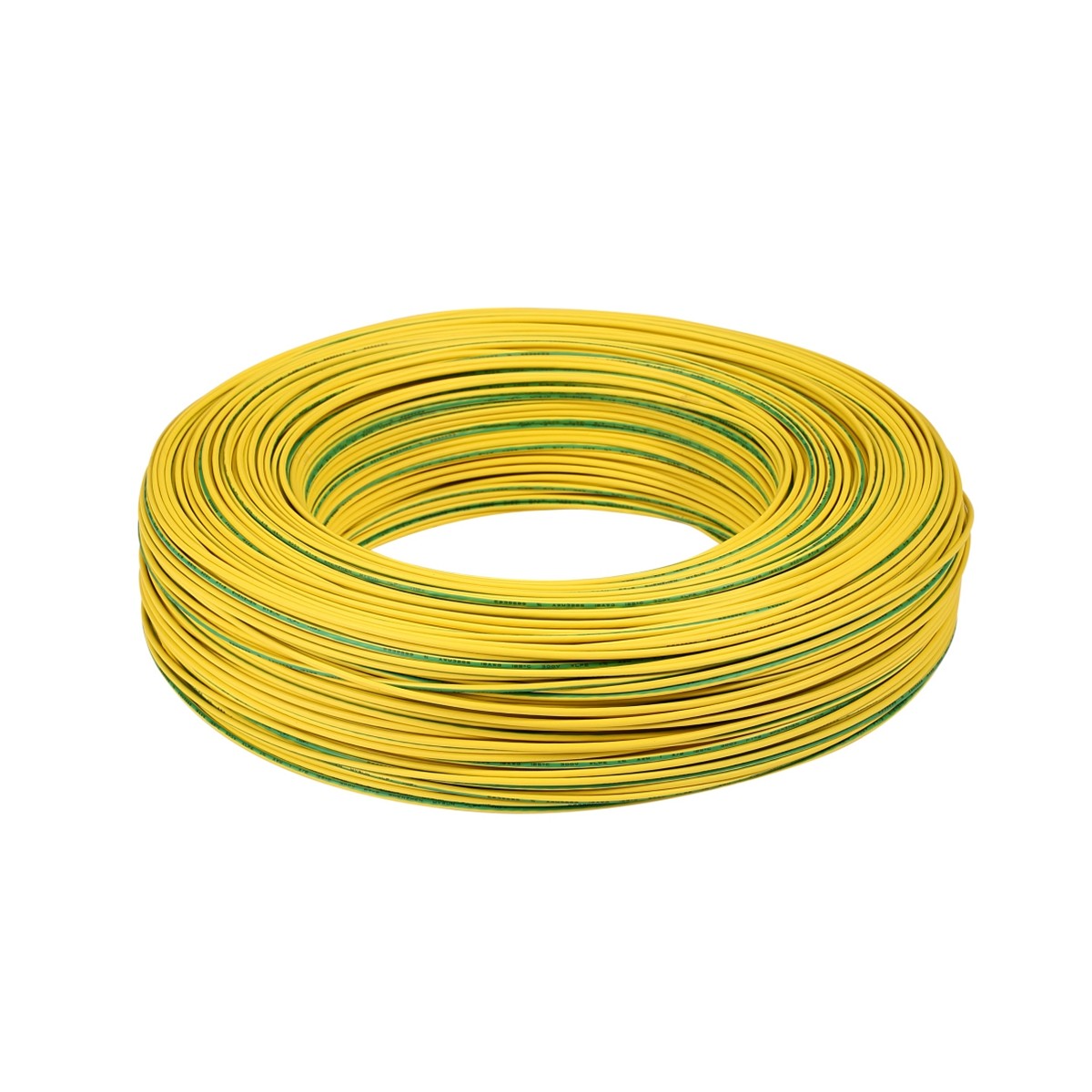

OD 4.92mm 9AWG XLPE Insulation Electric Wire UL3173 For UAV yellow

  • OD 4.92mm 9AWG XLPE Insulation Electric Wire UL3173 For UAV yellow
  • OD 4.92mm 9AWG XLPE Insulation Electric Wire UL3173 For UAV yellow
  • OD 4.92mm 9AWG XLPE Insulation Electric Wire UL3173 For UAV yellow
  • OD 4.92mm 9AWG XLPE Insulation Electric Wire UL3173 For UAV yellow
  • OD 4.92mm 9AWG XLPE Insulation Electric Wire UL3173 For UAV yellow
Place of Origin Guangdong ,China
Brand Name MYSUN
Certification UL
Model Number UL3173
Minimum Order Quantity 3050meters
Price 0.1-1.5USD/M
Packaging Details 305M/roll,610M/roll,carton 32cm*32cm*32cm
Delivery Time 5-10 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500000 meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UL3173 Insulation XLPE
Conductor Tinned Copper Rated Voltage 600V
Rated Temperature 125°C Application Heating,UAV,robot,lighting
Standard UL758 Sizes 26-9AWG
OD 2.04-4.92mm Package 305m/roll,610m/roll
Highlight

OD 4.92mm XLPE Insulation Electric Wire

,

9AWG XLPE Insulation Electric Wire

,

UL3173 Oil Resistance Electric Wire
Leave a Message
Product Description

UL3173 XLPE insulation electric wire

  • Flexibility: XLPE insulation
  • Maximum conductor resistance: 150 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: 125°C
  • Rated voltage: 600V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 9AWG,10AWG,12AWG,14AWG,16AWG, 18 AWG, 20 AWG, 22 AWG,24AWg,26AWG,28AWG,30AWG



Products demesion:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.78 2.04 143 305/1000





24

 11/0.16 0.60 2.16 89.3
22 17/0.16 0.76 2.32 56.4
20 21/0.18 0.94 2.49 35.2
18 16/0.254 1.18 2.73 22.2
16 26/0.254 1.50 3.06 14
14 41/0.254 1.89 3.45 8.78
12 65/0.254 2.37 3.93 5.53
10 105/0.254 3.02 4.58 3.476
9 133/0.254 3.36 4.92 2.73







OD 4.92mm 9AWG XLPE Insulation Electric Wire UL3173 For UAV yellow 0

OD 4.92mm 9AWG XLPE Insulation Electric Wire UL3173 For UAV yellow 1

Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FQA

1. Are you a manufacturer?

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.



2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.



3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
