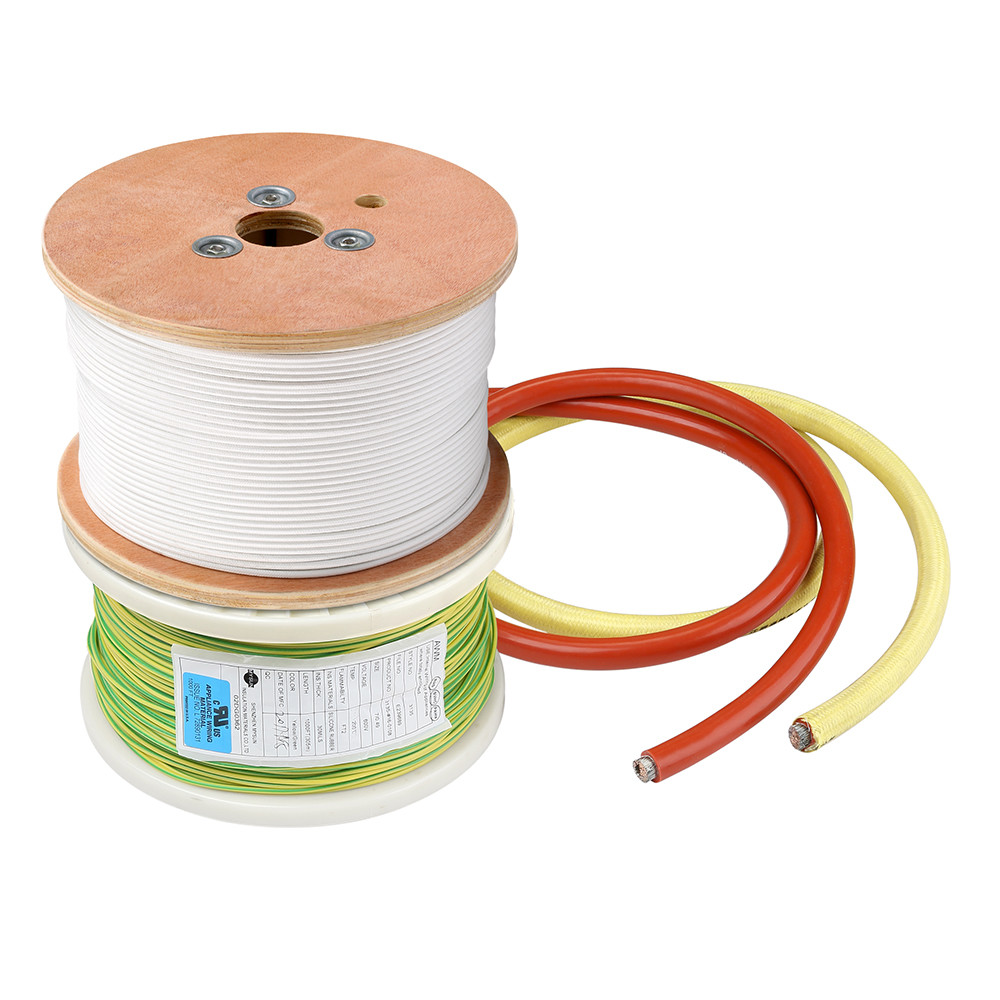

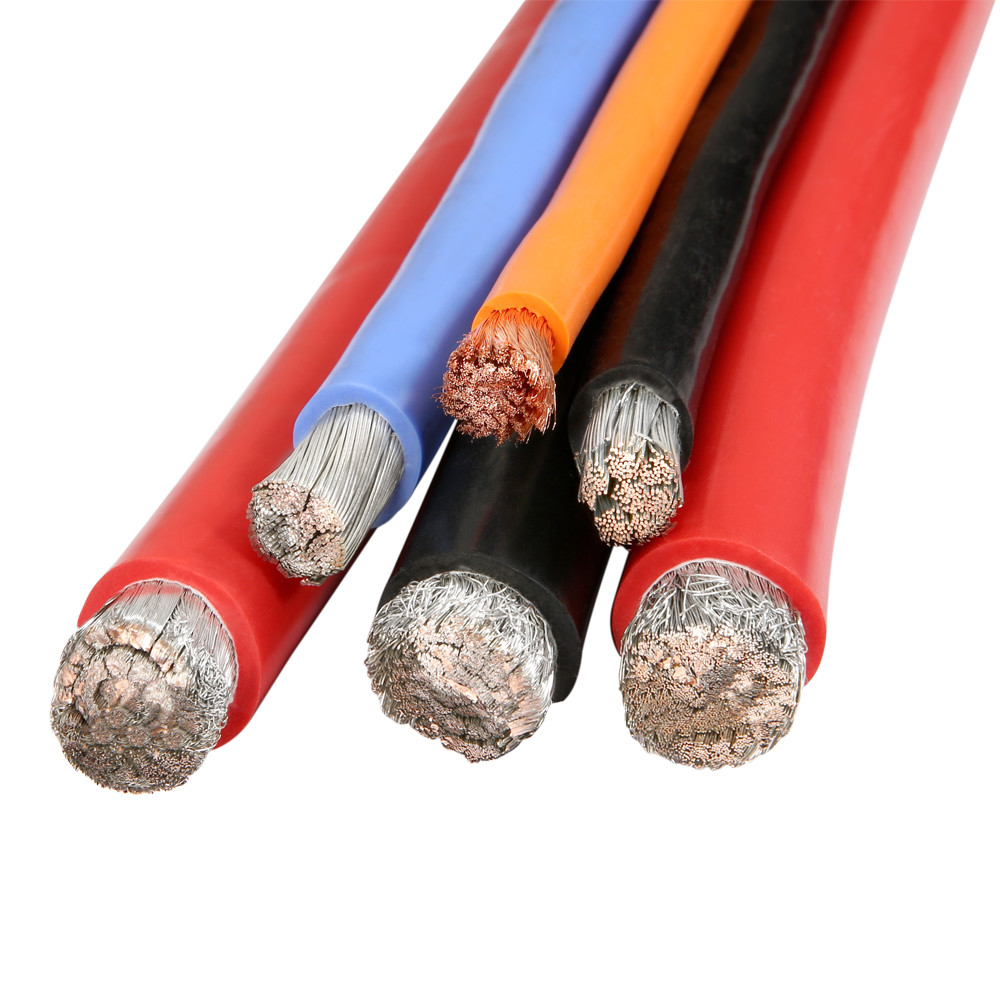

UL3135 600V Silicone Electric Wires 2.5mm For Coffee Machine Conection

  • UL3135 600V Silicone Electric Wires 2.5mm For Coffee Machine Conection
  • UL3135 600V Silicone Electric Wires 2.5mm For Coffee Machine Conection
Place of Origin Guangdong，China
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL3135
Minimum Order Quantity 3050meters
Price 0.06~0.48USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Color Green
Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc Rated Voltage 600v
Rated Temperature 150C Size 2.5mm
Conductor Tinned Copper Certification ROHS/CCC/VDE/CCC/ISO9001:2008
Standard UL758 Insulation Silicone Rebber + Fibber Glass
Type Insulated Max.Cond Resistance 7.16 Ω/KM
Construction 50/0.254
Highlight

UL3135 Silicone Electric Wires

,

600V Silicone Electric Wires

,

2.5mm Fiberglass Braided Wire
Leave a Message
Product Description

UL3135 2.5mm Electric Wires 600V silicone wires for coffee machine conection



 UL 3135  Specifications:

Nominal voltage:600V

Temperature range: 150℃

Standard: UL3075

Insulation: Silicone Rubber + Fibber glass

Conductor: Tinner copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.60 1.68 143 305/1000
24 7/0.20 0.61 1.81 89.3
22 7/0.254 0.77 1.97 56.4
20 7/0.31 0.94 2.14 35.2
18 7/0.39 1.19 2.39 22.2
16 7/0.49 1.49 2.69 14
24 1/0.50 0.50 0.65 1.80 89.3 305/1000
22 1/0.65 0.65 1.95 56.4
20 1/0.81 0.81 2.11 35.2
18 1/1.02 1.02 2.32 22.2
16 1/1.20 1.20 2.50 14
24 11/0.16 0.61 0.60 1.81 89.3 305/1000
22 17/0.16 0.76 1.96 56.4
20 26/0.16 0.94 2.14 35.2
18 41/0.16 1.18 2.38 22.2
16 26/0.254 1.49 2.69 14
0.30mm² 12/0.18 0.71 0.60 1.91 59.78 305/1000
0.50mm² 20/0.18 0.92 2.12 40.1
0.75mm² 30/0.18 1.13 2.33 26.7
1.00mm² 40/0.18 1.31 2.51 20
1.25mm² 50/0.18 1.46 2.66 14.35



Our Product



UL3135 600V Silicone Electric Wires 2.5mm For Coffee Machine Conection 0



Product Description



UL3135 600V Silicone Electric Wires 2.5mm For Coffee Machine Conection 1

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
