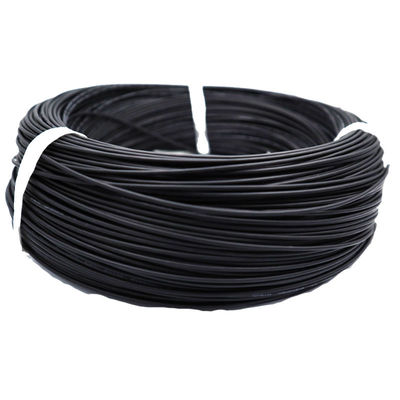

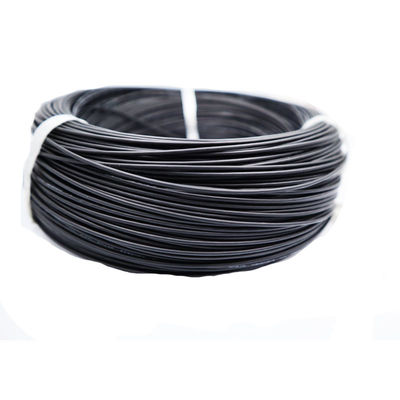

150C XLPE Hook Up Wire XLPE Insulated Cable UL3321 VW-1 18AWG For Industrial Power
| Place of Origin | Guangdong，China |
|---|---|
| Brand Name | Mysun |
| Certification | UL/cUL/CCC/CE/RoHS/SGS |
| Model Number | UL3321 |
| Minimum Order Quantity | 3050meters |
| Price | 0.06~0.48USD per M |
| Packaging Details | Standard packge: cardboard box Accept custom-made. |
| Delivery Time | 7-15 working day |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 500000 Meters per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Type | Stranded | Color | Black |
|---|---|---|---|
| Usage | Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc | Rated Voltage | 600v |
| Rated Temperature | 150C | Size | 18AWG |
| Conductor | Tinned Copper | Certification | ROHS/CCC/VDE/CCC/ISO9001:2008 |
| Standard | UL758 | Insulation | XLPE |
| Type | Insulated | Max.Cond Resistance | 23.2Ω/KM |
| Construction | 16/0.254 | ||
| Highlight | 150C XLPE Hook Up Wire,Industrial Power XLPE Hook Up Wire,XLPE Insulated Cable UL3321 |
||
Product Description
Up xlpe insulated cable UL3321 VW-1 18AWG 150c wires and cables
UL 3321 Specifications:
Nominal voltage:600V
Temperature range:150℃
Standard: UL3321
Insulation: xlpe
Conductor: Tinner copper
Applications:
* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
| 30 | 7/0.10 | 0.30 | 0.78 | 1.86 | 361 | 305/1000 |
| 28 | 7/0.127 | 0.38 | 1.94 | 227 | ||
| 26 | 7/0.16 | 0.48 | 2.04 | 143 | ||
| 24 | 11/0.16 | 0.60 | 2.16 | 89.3 | ||
| 22 | 17/0.16 | 0.76 | 2.32 | 56.4 | ||
| 20 | 21/0.18 | 0.94 | 2.49 | 35.2 | ||
| 18 | 16/0.254 | 1.18 | 2.73 | 22.2 | ||
| 16 | 26/0.254 | 1.50 | 3.06 | 14 | ||
| 14 | 41/0.254 | 1.89 | 3.45 | 8.78 | ||
| 12 | 65/0.254 | 2.37 | 3.93 | 5.53 | ||
| 10 | 105/0.254 | 3.02 | 4.58 | 3.476 | ||
| 9 | 133/0.254 | 3.36 | 4.92 | 2.73 | ||
| 8 | 133/0.28 | 3.75 | 1.15 | 6.05 | 2.16 | 100/328 |
| 6 | 84/0.45 | 4.79 | 7.09 | 1.361 | ||
| 4 | 133/0.45 | 6.02 | 8.32 | 0.8559 | ||
| 2 | 212/0.45 | 7.60 | 1.53 | 10.66 | 0.5384 |
Our Product
Product Description
Package & Delivery
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
