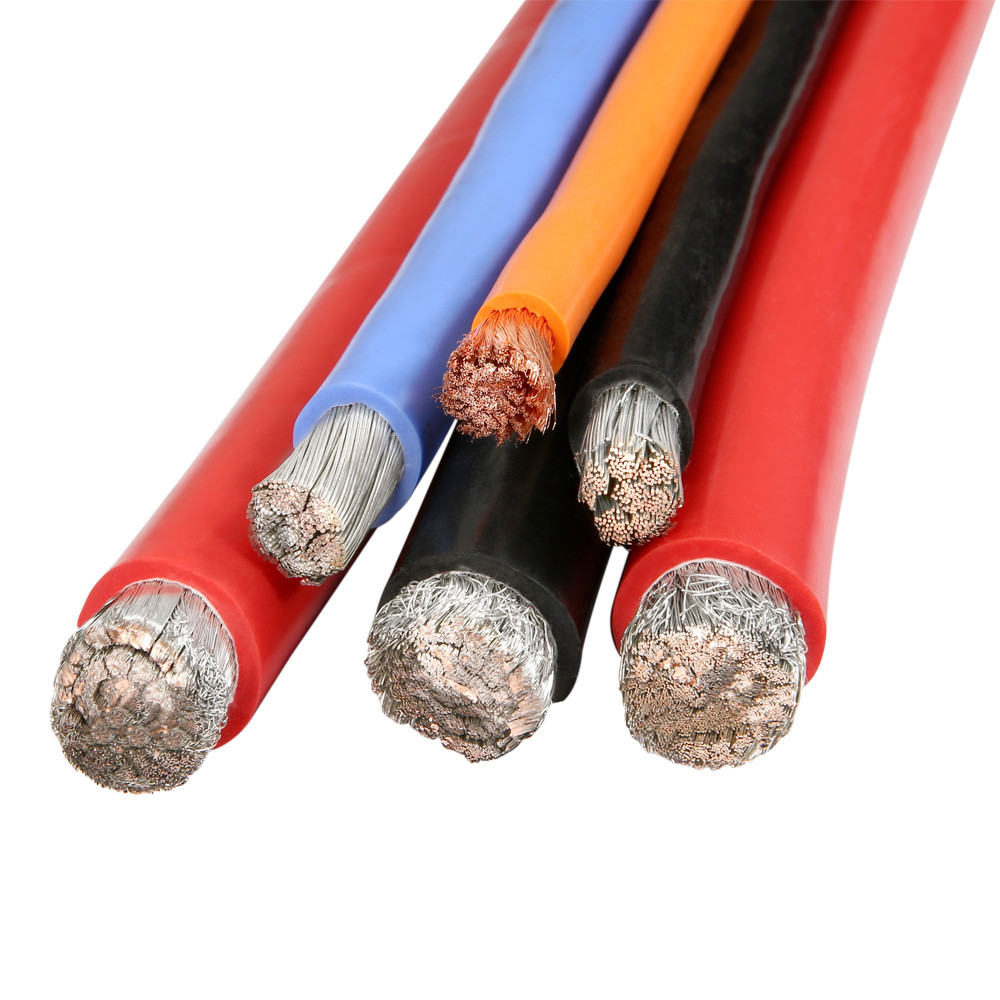

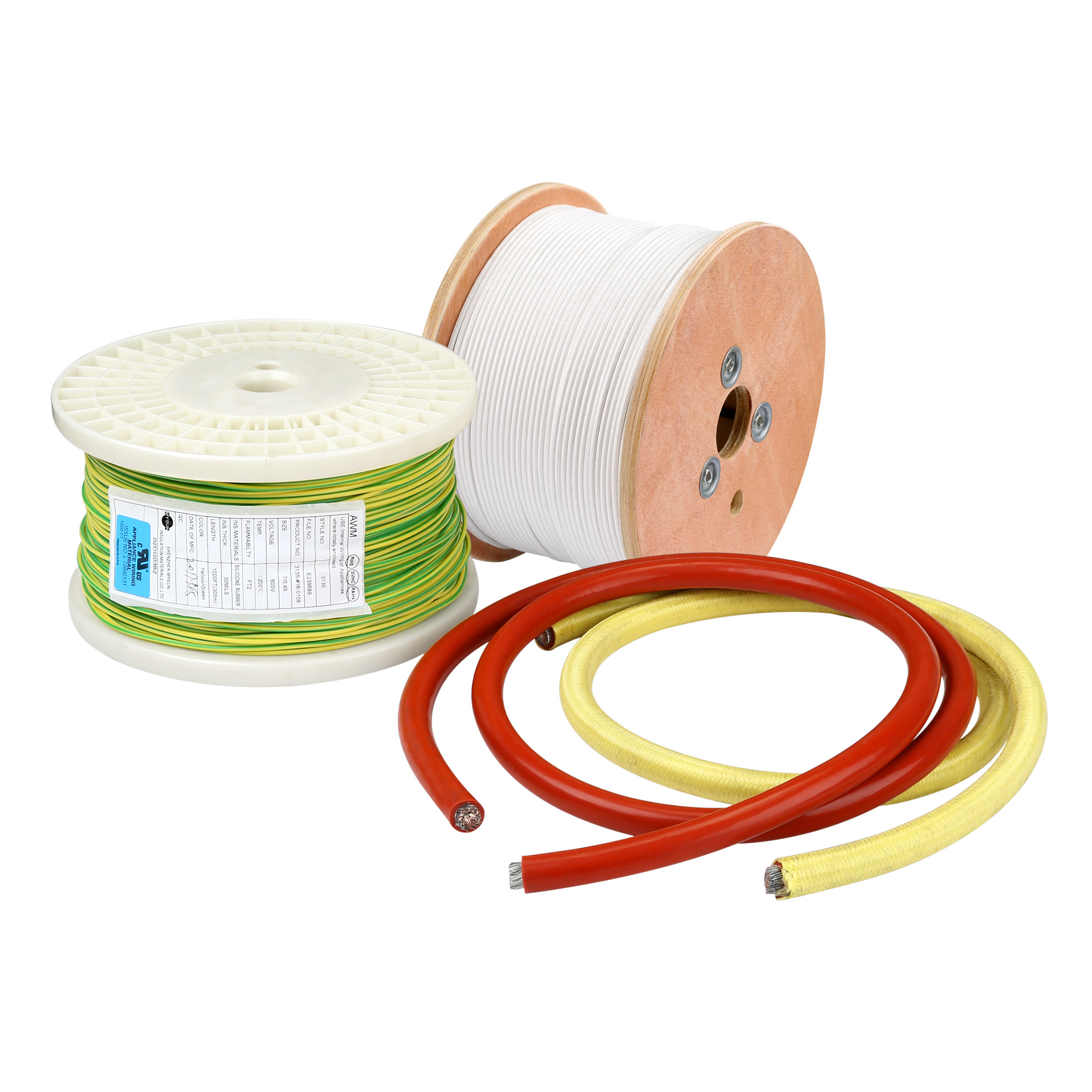

Tinned Copper 26AWG Silicone Rubber Od 1.38mm Can Be Customized

  • Tinned Copper 26AWG Silicone Rubber Od 1.38mm Can Be Customized
  • Tinned Copper 26AWG Silicone Rubber Od 1.38mm Can Be Customized
  • Tinned Copper 26AWG Silicone Rubber Od 1.38mm Can Be Customized
Place of Origin Guangdong，China
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL3367
Minimum Order Quantity 3050meters
Price 0.06~0.325USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Color Black
Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc Rated Voltage 300v
Rated Temperature 200C Size 26awg
Conductor Tinned Copper Certification ROHS/CCC/VDE/CCC/ISO9001:2008
Standard UL758 Insulation Silicone Rubber
Max.Cond Resistance 150Ω/KM Construction 7/0.16
Highlight

Oil Resistance XLPE Insulation Wire

,

CCC High Temperature XLPE Wire

,

Tinned Copper Fiberglass Braided Wire
Leave a Message
Product Description

Tinned Copper 26AWG Silicone Rubber Od 1.38mm Can Be Customized



UL3367 Specifications:

Nominal voltage:300V

Temperature range: 200℃

Standard: UL3367

Insulation: Silicone Rubber

Conductor: Tinner copper



Insulation Color: Red/Balck/Yellow/Green/Bule/ Yellow&Green
Silicones rubber Insulated Tinner Cooper Silicone Wire
Tinned or bare, strand or solid copper conductor, 26AWG min
Color-coded silicone rubber insulation
Uniform insulation thickness of wire to ensure easy stripping and cutting
Resistant to acid, alkali, oil, moisture and fungi, comforming ULstandard



Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor
Insulation
Max.Cond Resistance
Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM)
(M)(Ft)
26
7/0.16
0.48
0.45
1.38
143
305/1000
24
7/0.20
0.6
0.45
1.5
89.3
305/1000
22
7/0.254
0.76
0.45
1.66
56.4
305/1000
20
7/0.31
0.94
0.45
1.83
35.2
305/1000
18
7/0.39
1.17
0.45
2.07
22.2
305/1000
16
7/0.49
1.47
0.45
2.37
14
305/1000
14
41/0.254
1.89
0.45
2.77
8.78
305/1000
12
19/0.47
2.36
0.45
3.26
5.53
305/1000
10
19/0.61
3.05
0.45
3.95
3.48
305/1000



Our Product



Tinned Copper 26AWG Silicone Rubber Od 1.38mm Can Be Customized 0



Product Description



Tinned Copper 26AWG Silicone Rubber Od 1.38mm Can Be Customized 1



Tinned Copper 26AWG Silicone Rubber Od 1.38mm Can Be Customized 2

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



Tinned Copper 26AWG Silicone Rubber Od 1.38mm Can Be Customized 3







Company Introduction



Tinned Copper 26AWG Silicone Rubber Od 1.38mm Can Be Customized 4

Tinned Copper 26AWG Silicone Rubber Od 1.38mm Can Be Customized 5
