UL569 PVC Insulated Electric Wire 1.50mm Tinned Copper Conductor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | UL1569 | Application | Internal Wireing For Appliance Etc. |
|---|---|---|---|
| Conductor Type | Stranded | Insulation Material | PVC |
| Rated Temperature | 80C/90C/105C | Rated Voltage | 300V |
| Colors | White Yellow Green Black Blue Red | Conductor Materials | Tinned Copper |
| Package | 305M/roll | Diameters | 0.24-1.50mm |
| Highlight | Tinned Copper PVC Electric Insulated Wire,UL569 PVC Insulated Electric Wire,1.50mm PVC Insulated Wire |
||
Product Description

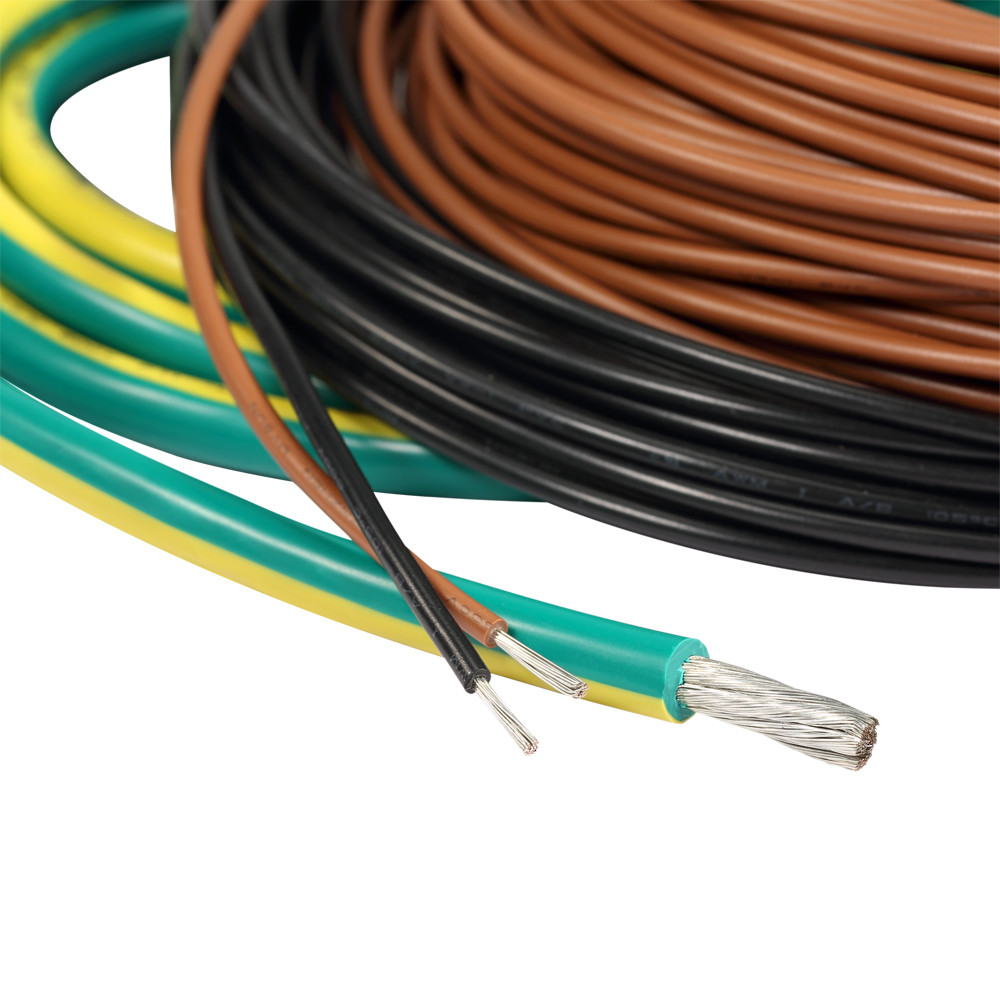

UL569 PVC Insulated Electric Wire 1.50mm Tinned Copper Conductor
Several temperature choice UL569 PVC Insulated Electric Wire Tinned Copper Conductor
Technical Data:
*Insulation:PVC
*Rated Voltage:300V
*Rated Temperature Range:80℃
*Insulation thickness:0.40mm
*Conductor:Tin-coated Copper Strand Wires
Characteristic:
PVC insulated material,excellent heat resistance and mechanical characters,easy stripping & cutting.
Resistance acids,alkalis,oils,moisture and mildew.
Product Demension:
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
| 32 | 7/0.08 | 0.24 | 0.38 | 1.00 | 542 | 610/2000 |
| 30 | 7/0.10 | 0.30 | 1.06 | 347 | ||
| 28 | 7/0.127 | 0.38 | 1.14 | 218 | ||
| 26 | 7/0.16 | 0.48 | 1.24 | 138 | ||
| 24 | 11/0.16 | 0.61 | 1.37 | 85.9 | 305/1000 | |
| 22 | 17/0.16 | 0.76 | 1.52 | 54.3 | ||
| 20 | 21/0.18 | 0.95 | 1.71 | 33.9 | ||
| 18 | 34/0.18 | 1.21 | 1.97 | 21.4 | ||
| 16 | 26/0.254 | 1.50 | 2.26 | 13.5 | ||
Service:
Shipment:
1. by express
2. by sea
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
FQA
1. Are you a manufacturer?
A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;
and have 20 years leading experience in manufacturing wires.
2. What are your main products?
A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.
3.What certification did your products pass?
A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
