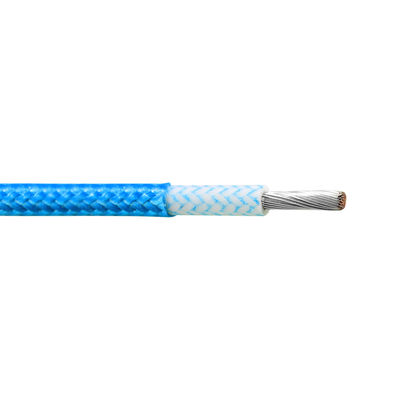

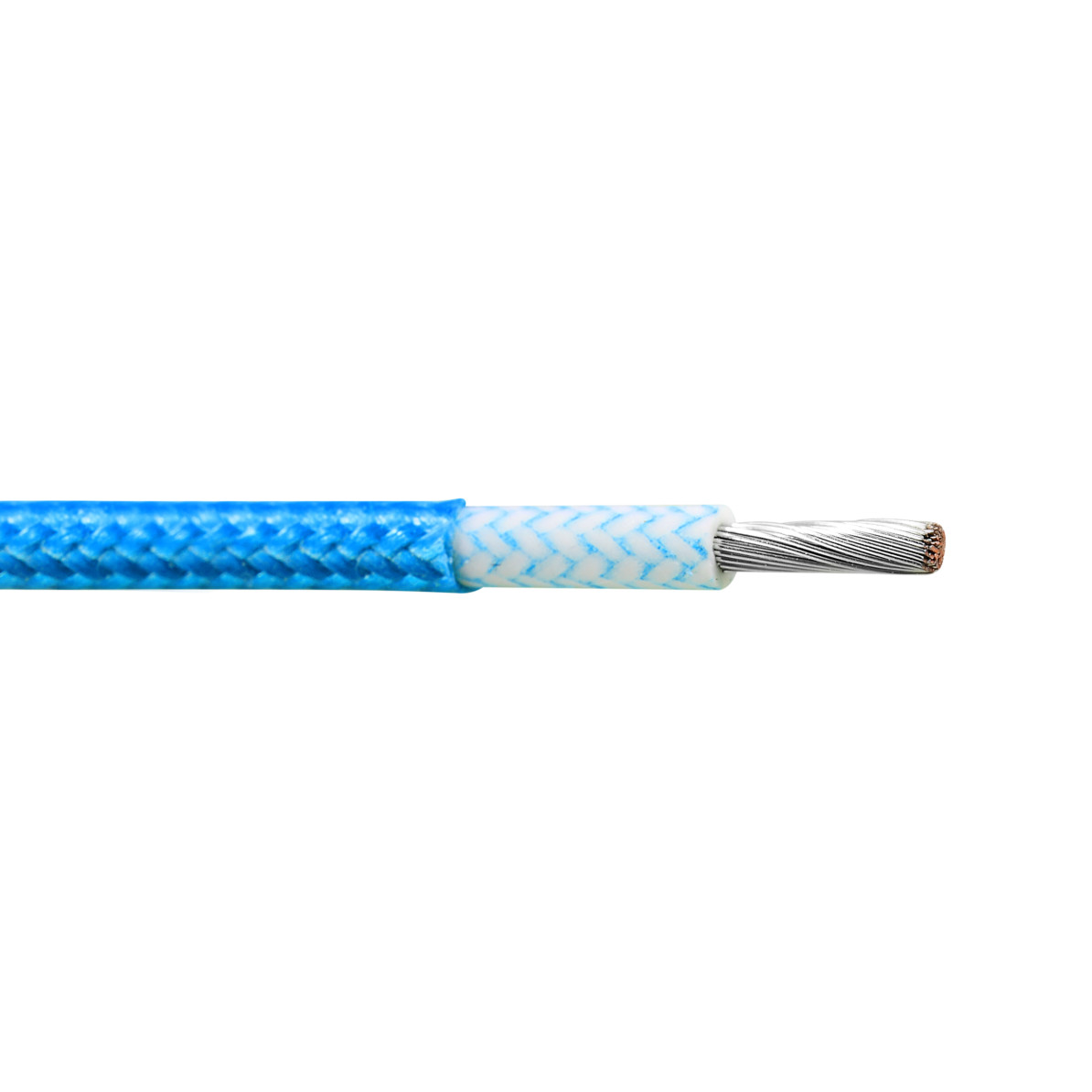

UL3071 100m/ Roll Silicone Rubber Copper Wire 14awg Fiberglass Electrical Wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Type | Stranded | Insulation Material | Silicone Rubber |
|---|---|---|---|
| Conductor Material | Tinned Copper | Type | Insulated |
| Color | Red,Black,blue,yellow,green | Rated Voltage | 600V |
| Cross Section | 13 14 16AWG | Core | Single |
| Packing | 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll | Temp Reistance | 200 Degree |
| Highlight | UL3071 Silicone Rubber Copper Wire,100m/ Roll Silicone Rubber Copper Wire,14awg Fiberglass Electrical Wire |
||
Product Description
12 Gauge Silicone Rubber Heat Resistance Insulation Wire stranded copper wire 14 awg electrical wire
Mysun 3071 High Temperature Wire has the following characteristics:
- Very Good Mechanical Strength and Abrasion Resistance
- Excellent Electrical Insulating Properties
- Excellent Thermal Stability
- Resistant to Chemicals and Solvents
- Heat, Age, & Ozone Resistant
- Good Flexibility
- Thin Walls for Weight and Space Savings
- Good Lubricity (low coefficient of friction)
Suitable for use as internal wiring in appliances and electronic equipment. This wire meets UL Style 3071.
Description: Single conductor stranded nickel plated copper insulated with siliconerubber and fiberglass insulation.
Operating Temperature:200°C
Voltage Rating: 600 Volts UL
This series is RoHS compliant.
| Conductor | Insulation | Max Cond resistance (ohms/m) | Unit length (m)(F) | |||
| Size | Construction | Diameter | Nominal Thickness | Diameter | ||
| (AWG) | (NO./mm) | (mm) | (mm) | (mm) | ||
| 18 | 7/0.39 | 1.19 | 0.93 | 3.05 | 23.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.93 | 3.35 | 14.6 | 305/1000 |
| 14 | 41/0.254 | 1.87 | 0.93 | 23.73 | 8.96 | 305/1000 |
| 13 | 50/0.254 | 2.07 | 0.93 | 3.93 | 6.97 | 305/1000 |
FAQ:
1, What’s the MOQ?
One roll. 100M/200M/300M/305M/500M/Roll.
2, How to get the samples?
We have most of the commonly used samples in Stock.
We can offer the free samples immediately.
3,What’s the delivery date?
Most of the commonly used products are in Stock. We can arrange it within one day.
We will arrange the delivery date as your requirement while the Bulk Production.
4, How to visit your factory/company?
We are located in Shenzhen City, Guangdong Province, closed to Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive away. Convenient for visit.
Shipment:
1. by express
2. by sea
3. by air plane
If you have your own shipper,you can tell me in advance.
My targert is to give my best serivce for you and hope we can have a good cooperation!
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
