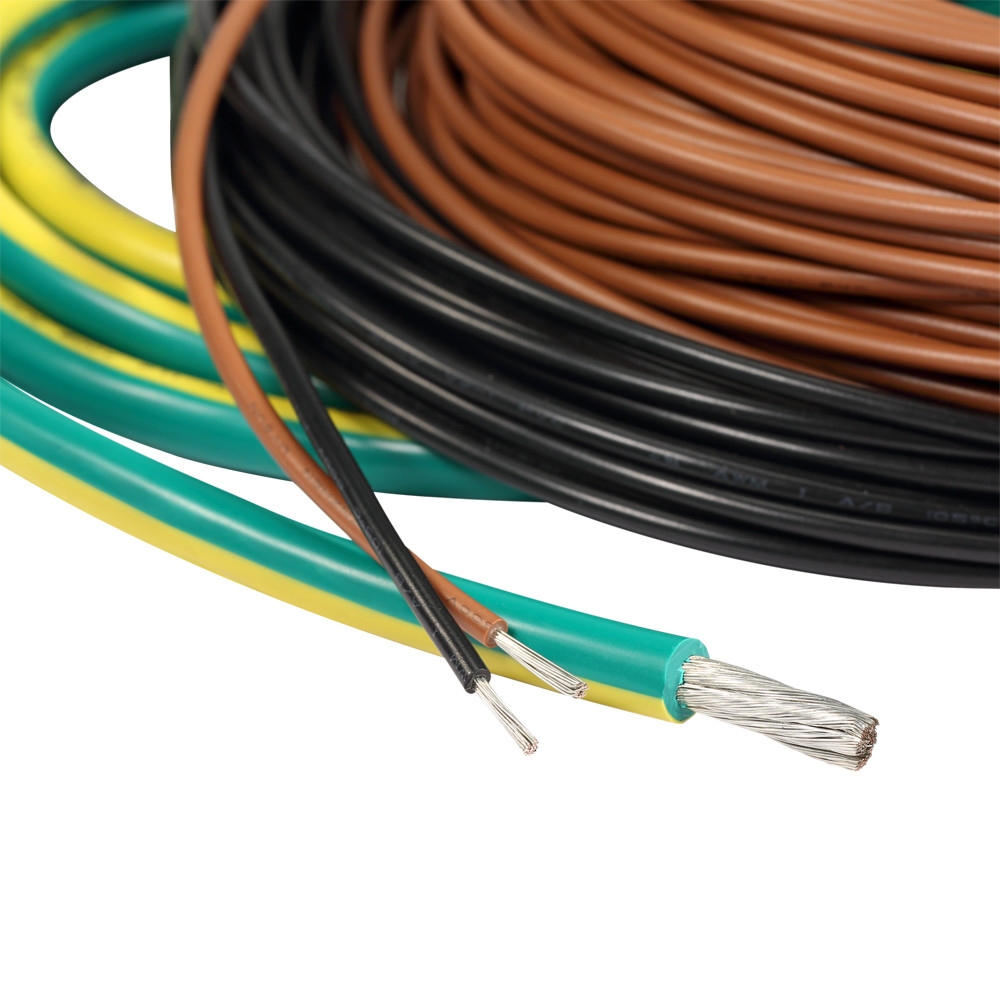

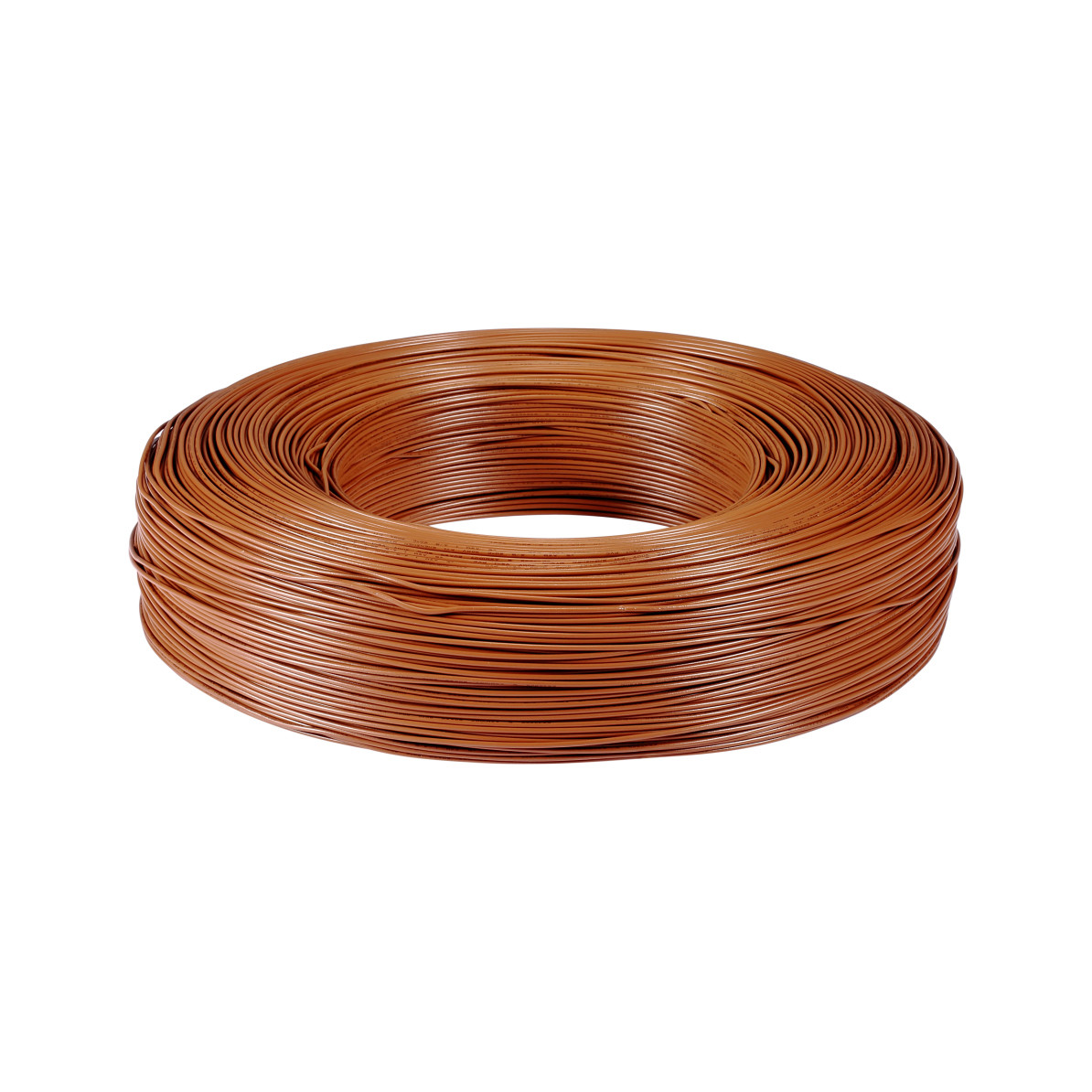

30AWG 600V PVC Insulated Copper Wire UL1015 105C Tinned Copper Insulated Wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | PVC Wire | Conductor | Tinned Copper |
|---|---|---|---|
| Insulation | PVC | Rated Temperature | 105C |
| Rated Voltage | 600V | Standard | UL758 |
| Sizes | 2-30AWG | Color | White Black Red Yellow Blue Black Brown |
| MOQ | 3000meters | Certificates | UL Certification |
| Application | Heating,building Wire | ||
| Highlight | 30AWG PVC Insulated Copper Wire,600V PVC Insulated Copper Wire,105C Tinned Copper Insulated Wire |
||
Product Description
600V 105C 30AWG PVC Insulated Electric Wire UL1015 Tinned Copper black red white
Technical Data:
*Insulation:PVC
*Rated Voltage:600V
*Rated Temperature Range:105℃
*Insulation thickness:0.78MM
*Conductor:Tinned Copper Strand Wires
APPLICATION:Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.
Characteristic:
PVC insulated material,excellent heat resistance and mechanical characters,easy stripping & cutting.
Resistance acids,alkalis,oils,moisture and mildew.
Product demension:
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
| 30 | 7/0.10 | 0.30 | 0.80 | 1.90 | 347 | 305/1000 |
| 28 | 7/0.127 | 0.38 | 1.98 | 218 | ||
| 26 | 7/0.16 | 0.48 | 2.08 | 138 | ||
| 24 | 11/0.16 | 0.61 | 2.21 | 85.9 | ||
| 22 | 17/0.16 | 0.76 | 2.36 | 54.3 | ||
| 20 | 21/0.18 | 0.95 | 2.55 | 33.9 | ||
| 18 | 34/0.18 | 1.21 | 2.81 | 21.4 | ||
| 16 | 26/0.254 | 1.50 | 3.10 | 13.5 | ||
| 14 | 41/0.254 | 1.89 | 3.49 | 8.45 | ||
| 12 | 65/0.254 | 2.37 | 3.97 | 5.31 | ||
| 10 | 105/0.254 | 3.02 | 4.62 | 3.343 | ||
| 9 | 133/0.254 | 3.39 | 4.99 | 2.652 | ||
| 8 | 133/0.280 | 3.75 | 1.15 | 6.05 | 2.102 | |
| 6 | 84/0.45 | 4.79 | 1.53 | 7.85 | 1.323 | |
| 4 | 133/0.45 | 6.02 | 9.08 | 0.8315 | ||
| 2 | 212/0.45 | 7.60 | 10.66 | 0.5231 | ||
OUR PRODUCTION
ABOUT US
.Our company specializing in insulation wires and cables for 22 years,we’d like to introduce this item for you,and its further have silicone,(FEP,PFA)XLPE ,PVC,XLPVC s,High temperature insulation tubing wires and cable.Our products had adopted ISO9000,ISO14001,IATF16949 Quality System Authorities with UL.CUL
,CCC,VDE,CSA certificate.
Service:
Shipment:
1. by express
2. by sea
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
FQA
1. Are you a manufacturer?
A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;
and have 20 years leading experience in manufacturing wires.
2. What are your main products?
A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.
3.What certification did your products pass?
A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
