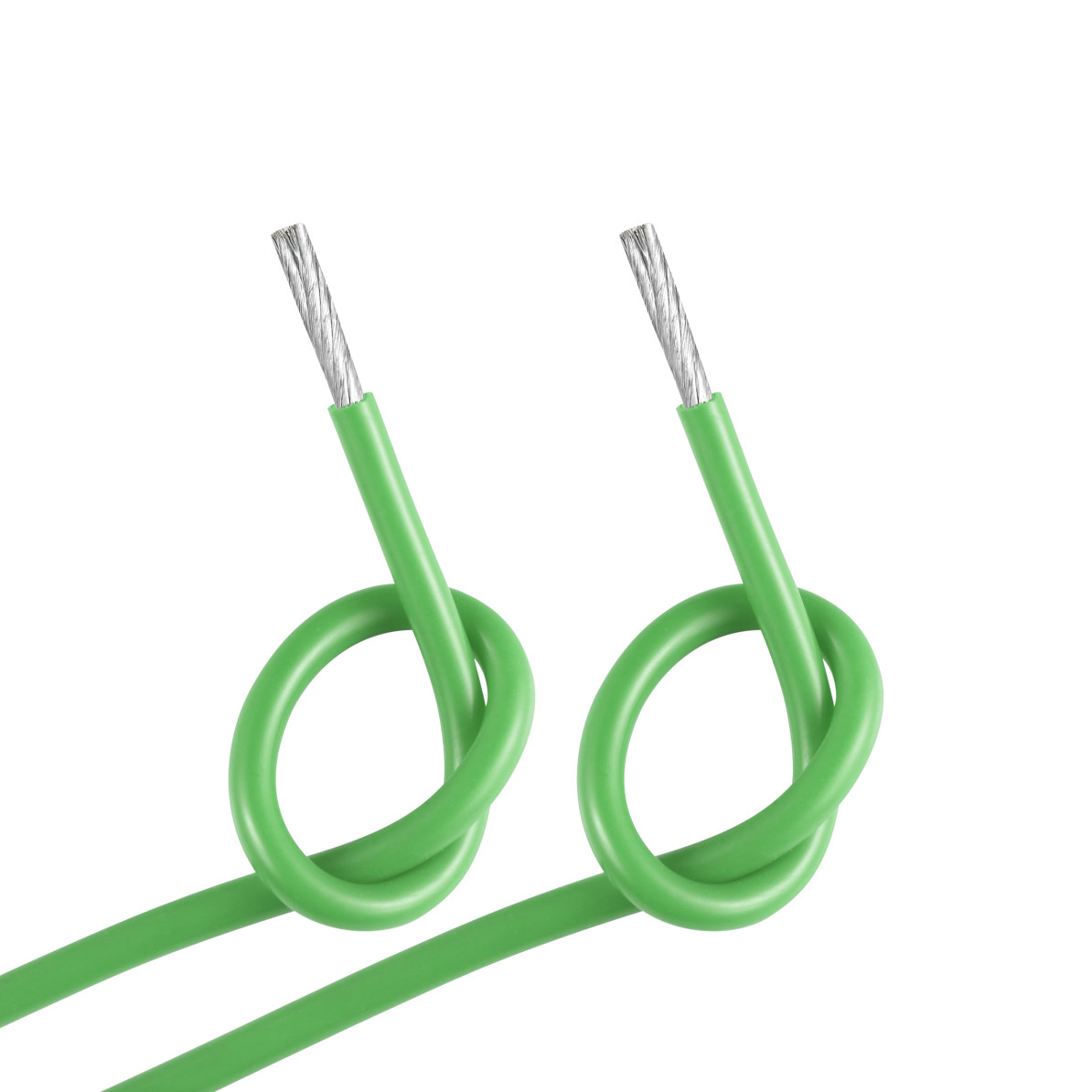

Nickel Plated UL1330 Flexible Electrical Wire Tinned Copper Conductor 200C

  • Nickel Plated UL1330 Flexible Electrical Wire Tinned Copper Conductor 200C
  • Nickel Plated UL1330 Flexible Electrical Wire Tinned Copper Conductor 200C
Place of Origin GuangDong,China
Brand Name MYSUN
Certification UL
Model Number UL1330
Minimum Order Quantity 3050meter
Price USD+0.02-0.67+$
Packaging Details 100m/roll,305m/roll
Delivery Time 7-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 850000+Meter+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UL1330 30AWG FEP Insulation Wire Coated Wire Color All Colors
Conductor Nickel-plated Copper Insulation Fep
Rated Voltage 600V Rated Temperature 200C
Sample Conventional Sample Free Packing 100m/roll,305m/roll
Producing Experience 20 Years Delivery Time 7-15 Days
Material FEP+Tinned Copper SIZE 0-30AWG
Highlight

Nickel Plated Flexible Electrical Wire

,

UL1330 Flexible Electrical Wire

,

Tinned Copper Insulated Wire 200C
Leave a Message
Product Description

UL1330 FEP flexible electrical wire Tinned Copper Conductor 200C 600V



Specifications:

Nominal voltage: 600V

Temperature range: 200C

Standard: UL 758

Conductor: Nickel-plated copper wire

Insulation: FEP

Application:Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.



Lead Time :

Quantity(Meters) 1 - 6100 >6100
Est. Time(days) 7 To be negotiated



Product dimensions:

CONDUCTOR INSULATION MAX.COND RESISTANCE (Ω/KM) UNIT LENGTH (M)(FT)
SIZE (AWG) CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm) DIAMETER (mm)
30 1/0.26 0.26 0.305 0.87 361 610(2000)
7/0.10 0.30 0.305 0.91
28 1/0.32 0.32 0.305 0.93 227 610(2000)
7/0.12 0.36 0.305 0.97
26 7/0.16 0.48 0.305 1.09 143 610(2000)
19/0.10 0.48 0.305 1.11
24 1/0.50 0.50 0.305 1.11 89.3 610(2000)
7/0.20 0.60 0.305 1.21
19/0.12 0.60 0.305 1.21
22 1/0.65 0.65 0.33 1.31 56.4 305(1000)
7/0.254 0.76 0.33 1.42
19/0.15 0.75 0.33 1.41
20 1/0.81 0.81 0.33 1.47 35.2 305(1000)
7/0.31 0.93 0.33 1.59
19/0.19 0.93 0.33 1.59
18 1/1.02 1.02 0.33 1.68 22.2 305(1000)
7/0.39 1.17 0.33 1.83
19/0.235 1.17 0.33 1.83
16 1/1.30 1.30 0.33 1.96 14 305(1000)
7/0.49 1.47 0.33 2.13
19/0.30 1.50 0.33 2.16
14 19/0.37 1.85 0.33 2.51 8.78 305(1000)
12 19/0.47 2.35 0.33 3.01 5.53 305(1000)
10 19/0.61 3.05 0.33 4.71 3.476 305(1000)



Benefits of silicone rubber insulated wireSilicone rubber insulated wire offers the following benefits, making it ideal for demanding industrial applications:





  • Flexible Temperature Range: Silicone rubber insulated wire is ideal for applications where temperature varies frequently.
  • Flexible Stranding: Flexible conductor stranding makes the wire suitable for application areas with cramped spaces.
  • Chemical and Oil Resistance: Good resistance to oils, gasoline, and certain chemicals enhances the performance of this wire in extreme environments.
  • Enhanced Safety: The halogen free silicone rubber insulation does not release fumes or gases when ignited. This increases the safety of employees who work with electronic equipment.

Applications of Silicone Rubber Insulated Wires
This wire is specially recommended for various applications, including:

  • Radiators
  • Steel mills
  • Electric motors
  • Hot rolling mills
  • Cooking surfaces
  • Heating apparatus
  • Industrial converters
  • Ovens and ventilators
  • Household appliances
  • Metallurgical facilities
  • Civil and industrial plants
  • Lighting (halogen lamps, etc.)
  • High voltage electrical cabins and circuits

If you require a perfect wire or cable for any of the above mentioned applications, silicone rubber insulated
wire is what you need. You can contact us to help you select the wire gauge and shielding that can meet
your needs. If required, We can also aid you with custom manufactured wires and cables.

QNH76117-b--20170321_01--20170321_08--20170321_02--20170321_03--20170321_04--20170321_05--20170321_06--20170321_012



Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
