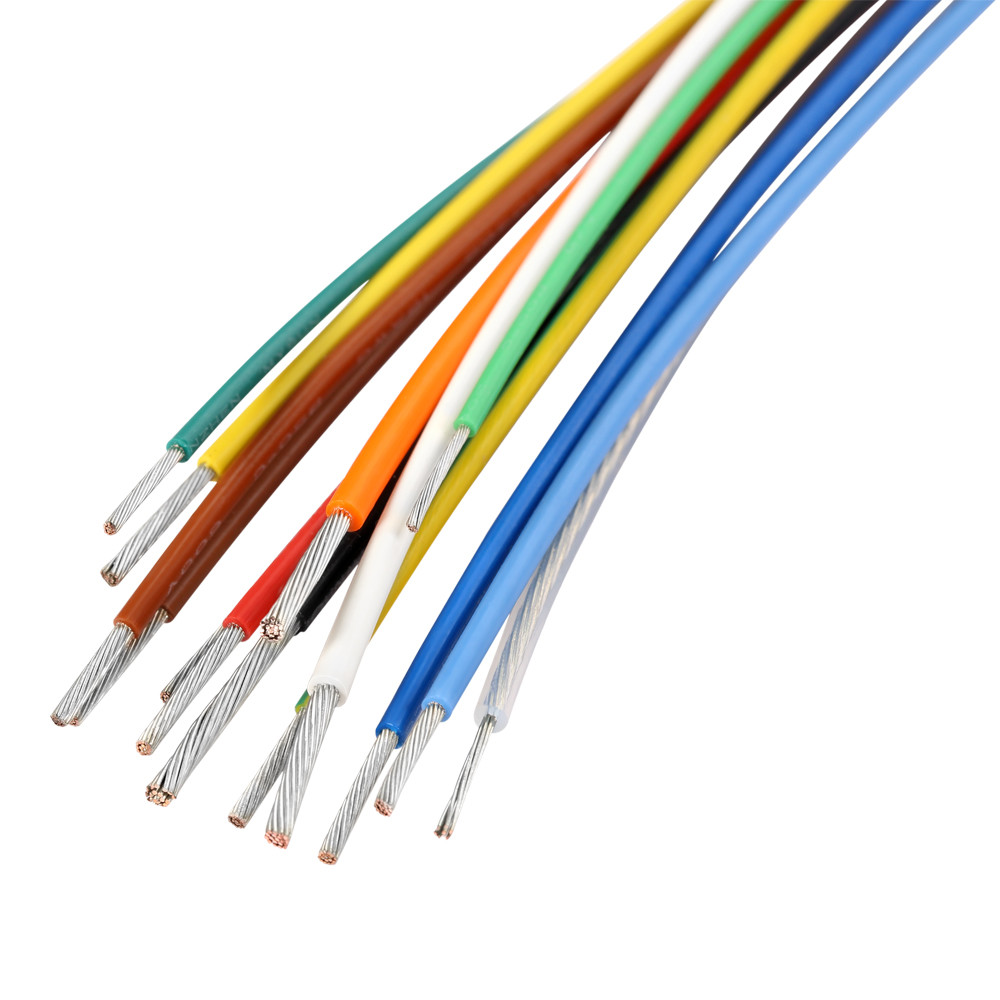

E239689 UL1727 Flexible Insulated Wire PFA 600V 250C Rubber Tinned Copper

  • E239689 UL1727 Flexible Insulated Wire PFA 600V 250C Rubber Tinned Copper
  • E239689 UL1727 Flexible Insulated Wire PFA 600V 250C Rubber Tinned Copper
Place of Origin GuangDong,China
Brand Name MYSUN
Certification UL
Model Number UL1727
Minimum Order Quantity 3050meter
Price USD+0.02-0.67+$
Packaging Details 100m/roll,305m/roll
Delivery Time 7-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 850000+Meter+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UL1727 Insulation High Temperature L Resistance Electric Hook-up Wire Color All Colors
Conductor Nickel-plated Copper Insulation PFA
Rated Voltage 600V Rated Temperature 250C
Sample Conventional Sample Free Packing 100m/roll,305m/roll
Producing Experience 20 Years Delivery Time 7-15 Days
Material PFA+Tinned Copper SIZE 10-30AWG
Highlight

E239689 Flexible Insulated Wire

,

UL1727 Flexible Insulated Wire

,

PFA Rubber Tinned Copper Wire
Leave a Message
Product Description



All Colors Flexible Insulated Wire E239689 UL 1727 PFA 600V 250C Cable Long Lifespan



Specifications:

Nominal voltage: 600V

Temperature range: 250C

Standard: UL 758

Conductor: Nickel-plated copper wire

Insulation:PFA



Lead Time :

Quantity(Meters) 1 - 6100 >6100
Est. Time(days) 7 To be negotiated



Application:Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.



Product dimensions:



Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
32 7/0.08 0.24 0.51 1.26 563 610/2000
30 7/0.10 0.30 0.51 1.32 361 610/2000
28 7/0.12 0.36 0.51 1.38 227 610/2000
26 7/0.16 0.48 0.51 1.50 143 610/2000
24 7/0.20 0.60 0.51 1.62 89.3 610/2000
22 19/0.15 0.75 0.51 1.77 56.4 305/1000
20 19/0.185 0.93 0.51 1.95 35.2 305/1000
18 19/0.235 1.17 0.51 2.19 22.2 305/1000
16 19/0.30 1.50 0.51 2.52 14 305/1000
14 19/0.37 1.85 0.51 2.87 8.78 305/1000
12 19/0.47 2.35 0.51 2.37 5.53 305/1000
10 37/0.43 3.00 0.51 4.02 3.476 305/1000
8 37/0.54 3.78 0.80 5.38 2.16 customized
7 37/0.60 4.20 0.80 5.80 1.716
6 37/0.68 4.76 0.80 6.36 1.361
5 37/0.76 5.32 0.80 6.92 1.079
4 37/0.86 6.02 0.80 7.62 0.8859
3 7/2.21 6.63 0.80 8.23 0.6788
2 7/2.48 7.44 0.80 9.04 0.5384
1 7/2.78 8.34 1.20 10.74 0.4268
0 7/3.20 9.60 1.20 12.00 0.3367
2/0 7/3.57 10.71 1.20 13.11 0.267
3/0 7/3.94 11.82 1.20 14.22 0.2119
4/0 7/4.42 13.26 1.20 15.66 0.168



Benefits of silicone rubber insulated wireSilicone rubber insulated wire offers the following benefits, making it ideal for demanding industrial applications:





  • Flexible Temperature Range: Silicone rubber insulated wire is ideal for applications where temperature varies frequently.
  • Flexible Stranding: Flexible conductor stranding makes the wire suitable for application areas with cramped spaces.
  • Chemical and Oil Resistance: Good resistance to oils, gasoline, and certain chemicals enhances the performance of this wire in extreme environments.
  • Enhanced Safety: The halogen free silicone rubber insulation does not release fumes or gases when ignited. This increases the safety of employees who work with electronic equipment.

Applications of Silicone Rubber Insulated Wires
This wire is specially recommended for various applications, including:

  • Radiators
  • Steel mills
  • Electric motors
  • Hot rolling mills
  • Cooking surfaces
  • Heating apparatus
  • Industrial converters
  • Ovens and ventilators
  • Household appliances
  • Metallurgical facilities
  • Civil and industrial plants
  • Lighting (halogen lamps, etc.)
  • High voltage electrical cabins and circuits

If you require a perfect wire or cable for any of the above mentioned applications, silicone rubber insulated
wire is what you need. You can contact us to help you select the wire gauge and shielding that can meet
your needs. If required, We can also aid you with custom manufactured wires and cables.
