UAV Heater Fiberglass Insulated Copper Wire 30AWG Silicone Rubber UL3068
| Place of Origin | Guangdong ,China |
|---|---|
| Brand Name | MYSUN |
| Certification | UL |
| Model Number | UL3068 |
| Minimum Order Quantity | 3050meters |
| Price | 0.01-0.03USD/M |
| Packaging Details | carton32mm*32mm*32mm |
| Delivery Time | 5-10working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500000 meters per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | UL3068 | Insulation | Silicone Rubber Fiberglass Braided |
|---|---|---|---|
| Conductor | Tinned Copper | Rated Voltage | 300V |
| Rated Temperature | 150°C | Standard | UL758 |
| Size | 16-30AWG | OD | 1.50-2.69mm |
| Package | 305m/roll,610m/roll | Usage | Home Appliance Lighting Heater UAV |
| Material | Silicone+Tinned Copper+Fiber Glass | Usage | Electrical Appliance |
| Highlight | UAV Heater Fiberglass Insulated Copper Wire,Fiberglass Insulated Copper Wire 30AWG,UL3068 Fiberglass Silicone Wires |
||
Product Description

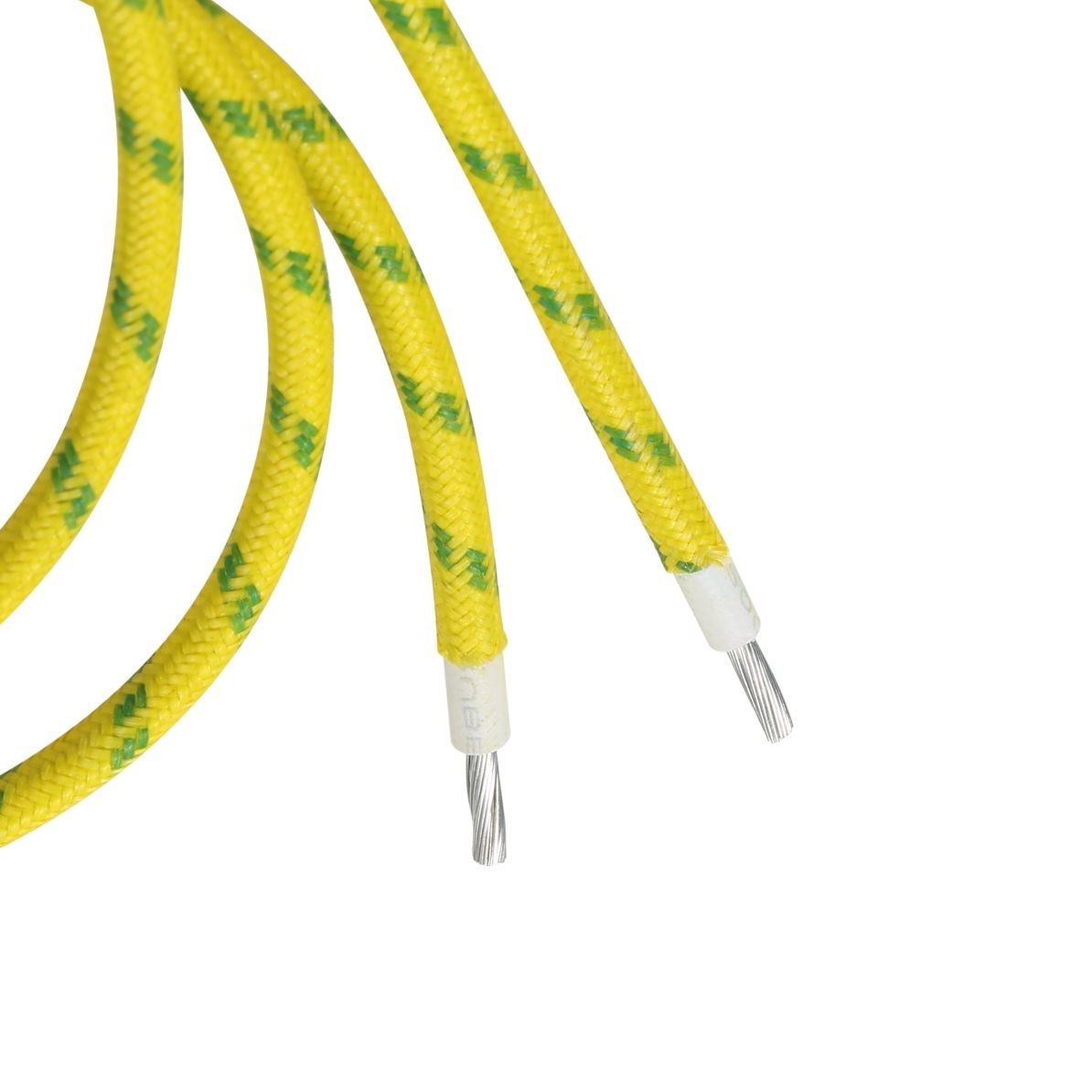

Silicone Rubber UL3068 Fiberglass Braided Wires Insulation 30AWG insulated copper cable
- Flexibility: silicone rubber insulation with fiberglass braided
- Maximum conductor resistance: 381 ohm/km
- Resistant to oil, hot and cold, flexing
- Rated temperature: 150°C
- Rated voltage: 300V
- Insulation potential strength: 2000 VAC/min
- Passes the FT2 flame test
- Available in 16AWG, 18 AWG, 20 AWG, 22 AWG,24AWg,26AWG,28AWG,30AWG
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
| 30 | 7/0.10 | 0.30 | 0.60 | 1.50 | 361 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 1.58 | 227 | ||
| 26 | 7/0.16 | 0.48 | 1.68 | 143 | 305/1000 | |
| 24 | 7/0.20 | 0.61 | 1.81 | 89.3 | ||
| 22 | 7/0.254 | 0.77 | 1.97 | 56.4 | ||
| 20 | 7/0.31 | 0.94 | 2.14 | 35.2 | ||
| 18 | 7/0.39 | 1.19 | 2.39 | 22.2 | ||
| 16 | 7/0.49 | 1.49 | 2.69 | 14 | ||
Service:
Shipment:
1. by express
2. by sea
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
FQA
1. Are you a manufacturer?
A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;
and have 20 years leading experience in manufacturing wires.
2. What are your main products?
A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.
3. What certification did your products pass?
A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
