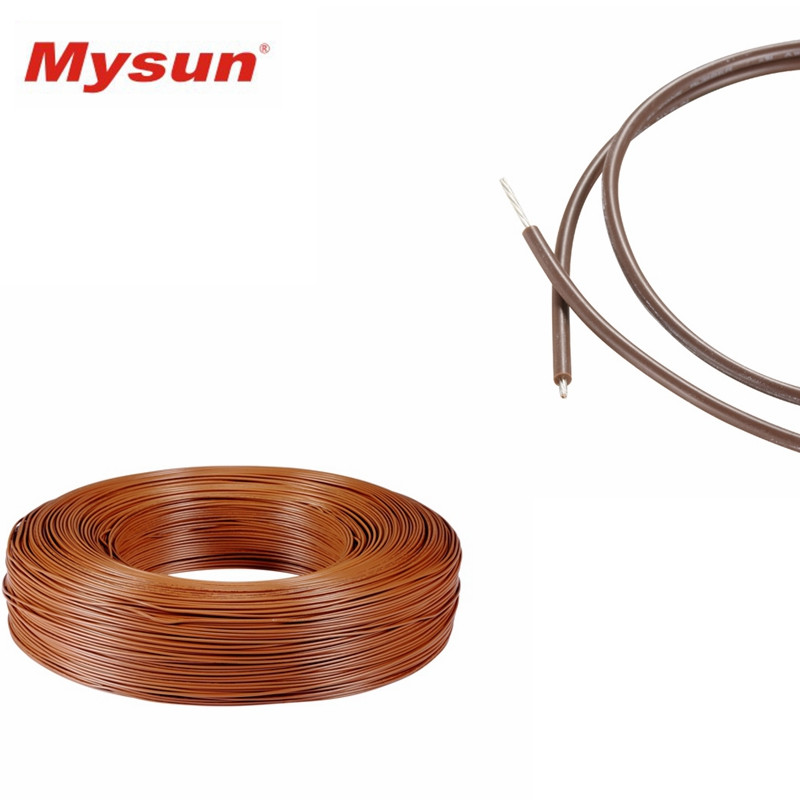

UL1007 Flexible PVC Insulated Copper Wire Electric Hook Up Cable

  • UL1007 Flexible PVC Insulated Copper Wire Electric Hook Up Cable
  • UL1007 Flexible PVC Insulated Copper Wire Electric Hook Up Cable
  • UL1007 Flexible PVC Insulated Copper Wire Electric Hook Up Cable
  • UL1007 Flexible PVC Insulated Copper Wire Electric Hook Up Cable
  • UL1007 Flexible PVC Insulated Copper Wire Electric Hook Up Cable
Place of Origin CHINA
Brand Name mysun
Certification UL
Model Number UL 1007-20
Minimum Order Quantity 305METER/METERS
Price US $0.01
Packaging Details 305M/roll,610M/roll,carton 32cm*32cm*32cm
Delivery Time 7DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 900Kilometer/Kilometers per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Conductor Material Copper
Application Various Insulation Material PVC
Color Requirement Rated Voltage 80C
Conductor Copper Core Standard UL758
Advantage 22 Years Production Experience MOQ 610m/Roll Or 305m/roll
Certification ROHS/UL/CCC/VDE/SGS/ISO9001:2008 Delivery Time 7-15 Days
Voltage 300V
Highlight

UL1007 Insulated Wire Cable

,

PVC Flexible Insulated Resistance Wire

,

Hook Up Stranded Copper Wire
Leave a Message
Product Description
UL1007 20AWG Hook-up Wire, Cable, LED Lighting SolidSpecifications:

Nominal voltage: 300V

Temperature range: 80℃

Standard: UL 758

Conductor: Tinned copper

Insulation: PVC

color: all colors
package: 305m/roll



Some of the major advantages of using PVC wires are:

The compact conductors reduce AC loss due to the proximity or skin effect.
They bear stresses related to thermo-mechanics during constant normal and short circuit conditions.
These cables have resistance against the chemical or electrolytic corrosion.
They are also unaffected by moisture.
These wires have great fire resisting qualities due to their resilient sheath.
They are unaffected by vibrations.

Packaging & Delivery
Packaging Details305/610m/roll; carton
PortShenzhen
Lead Time :
Quantity(Meters) 1 - 6100 >6100
Est. Time(days) 7 To be negotiated



Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
32 7/0.08 0.24 0.38 1.00 542 610/2000
30 7/0.10 0.30 1.06 347
28 7/0.127 0.38 1.14 218
26 7/0.16 0.48 1.24 138
24 11/0.16 0.61 1.37 85.9 305/1000
22 17/0.16 0.76 1.52 54.3
20 21/0.18 0.95 1.71 33.9
18 34/0.18 1.21 1.97 21.4
16 26/0.254 1.50 2.26 13.5







UL1007 20AWG Hook-up Wire, Cable, LED Lighting Solid
UL1007 20AWG Hook-up Wire, Cable, LED Lighting SolidUL1007 20AWG Hook-up Wire, Cable, LED Lighting SolidUL1007 20AWG Hook-up Wire, Cable, LED Lighting SolidUL1007 20AWG Hook-up Wire, Cable, LED Lighting SolidUL1007 Flexible PVC Insulated Copper Wire Electric Hook Up Cable 5UL1007 Flexible PVC Insulated Copper Wire Electric Hook Up Cable 6UL1007 20AWG Hook-up Wire, Cable, LED Lighting SolidUL1007 20AWG Hook-up Wire, Cable, LED Lighting Solid



Certifications:

Since starting production in 2002, MYSUN has passed product authentication, including UL, cUL, VDE, CSA and CCC. Also got ISO9001 quality management system in 2005. In order to provide better service, MYSUN passed ISO14001 environment management system while completing its revision changing of ISO9001 in the year 2010 and successfully obtained IATF16949 certificate in 2015. The complete quality guarantee system and advanced testing equipment provide high class products.

UL1007 20AWG Hook-up Wire, Cable, LED Lighting Solid

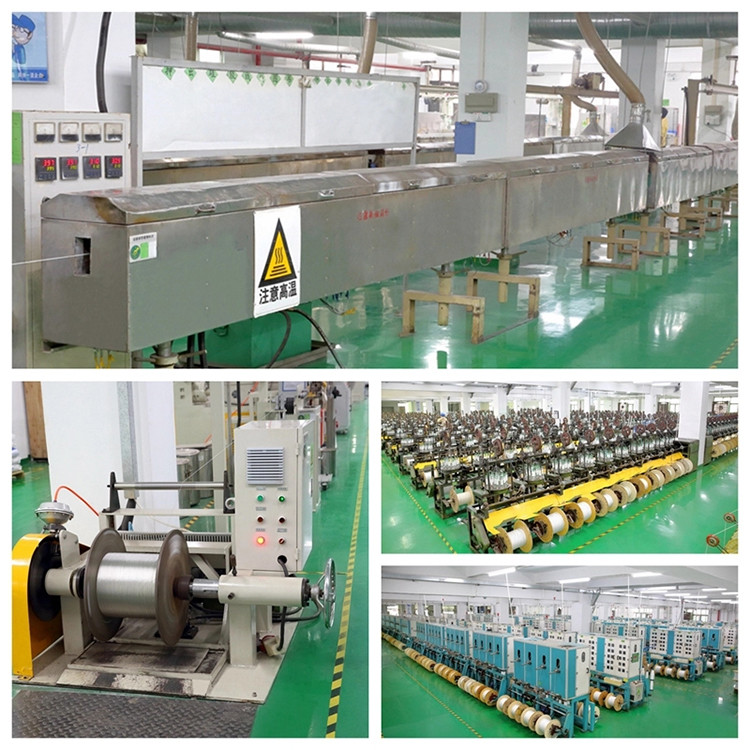

Test Equipment:

"Quality is guarantee for existence" is the guideline that MYSUN always uphold. Advanced manufacturing and testing equipment, selected raw materials, a sound man.

UL1007 20AWG Hook-up Wire, Cable, LED Lighting Solid


Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
