30V FEP Insulated Wire Heating Application Copper Electric Wire Multicore

  • 30V FEP Insulated Wire Heating Application Copper Electric Wire Multicore
  • 30V FEP Insulated Wire Heating Application Copper Electric Wire Multicore
  • 30V FEP Insulated Wire Heating Application Copper Electric Wire Multicore
  • 30V FEP Insulated Wire Heating Application Copper Electric Wire Multicore
Place of Origin Guangdong,China
Brand Name mysun
Certification VDE/ROHS/UL/CCC//CCC/SGS/ISO9001:2008
Model Number UL10064
Minimum Order Quantity 305m
Price 0.1
Delivery Time 7-15 work Days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 1200000 Meters/Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 30VV Rated Temperature 105 Degree
Delivery Time 7-15 Days Advantage 20 Years Production Experience
Hot-sales Size 32 30 28 AWG Feature Home Appliance
Highlight

30V Solid Core Wire

,

FEP Thin Insulated Wire

,

Multicore Copper Electrical Wire
Leave a Message
Product Description

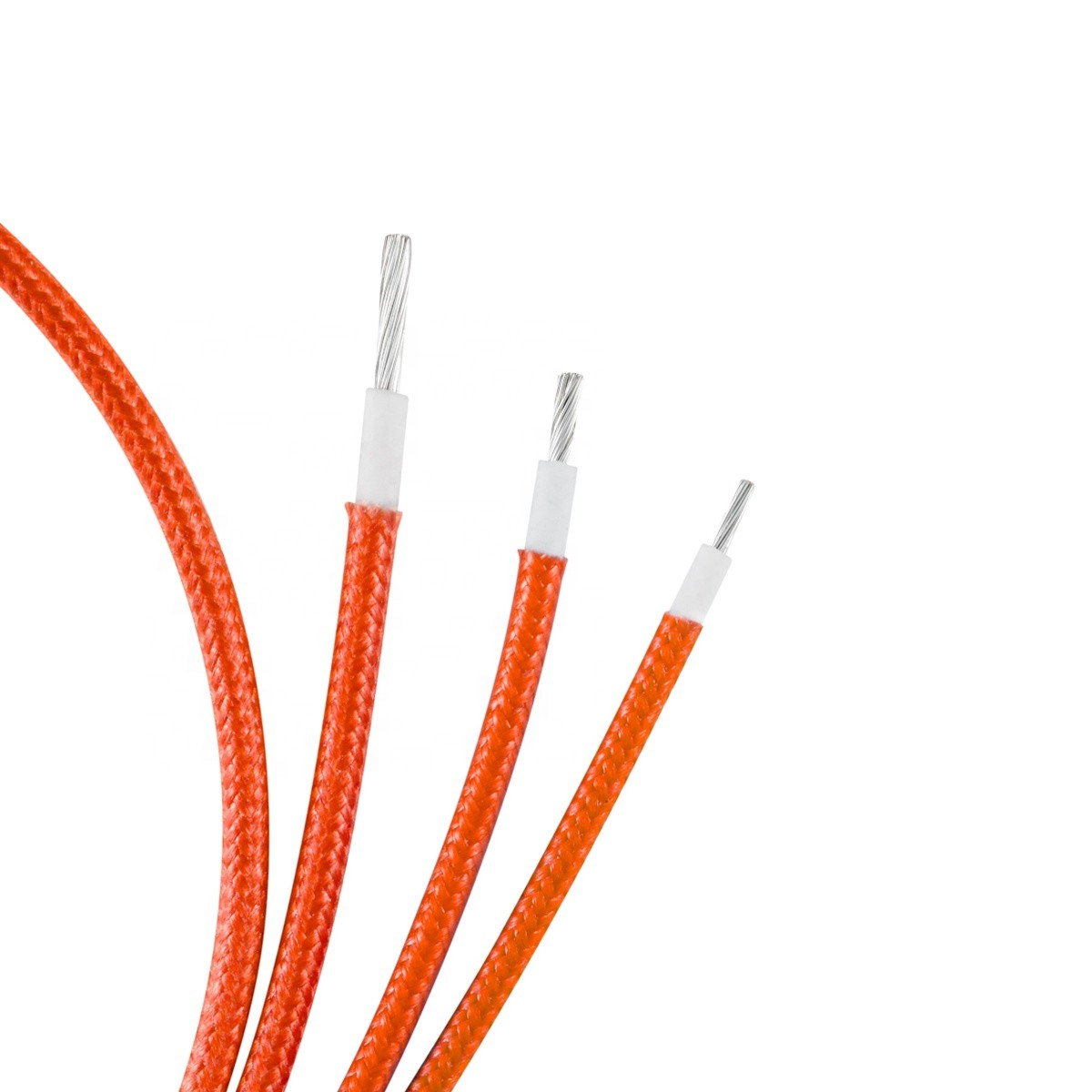

30V FEP Insulated Wire Heating Application Copper Electric Wire Multicore 0





Specification
Conductor


Insulation

Max.Cond Resistance
Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM)
(M)(Ft)
32
7/0.08
0.24
0.2
0.64
563
1220/4000
30
7/0.10
0.3
0.2
0.7
381
1220/4000
28
7/0.127
0.38
0.25
0.88
239
1220/4000
26
7/0.16
0.48
0.3
1.08
150
610/2000
24
7/0.2
0.61
0.3
1.21
94.2
610/2000
22
19/0.15
0.77
0.3
1.37
59.4
610/2000
20
19/0.19
0.92
0.3
1.52
36.7
610/2000
18
19/0.235
1.19
0.3
1.79
23.2
305/1000
16
19/0.30
1.49
0.3
2.09
14.6
305/1000
14
19/0.37
1.87
0.35
2.57
8.78
305/1000

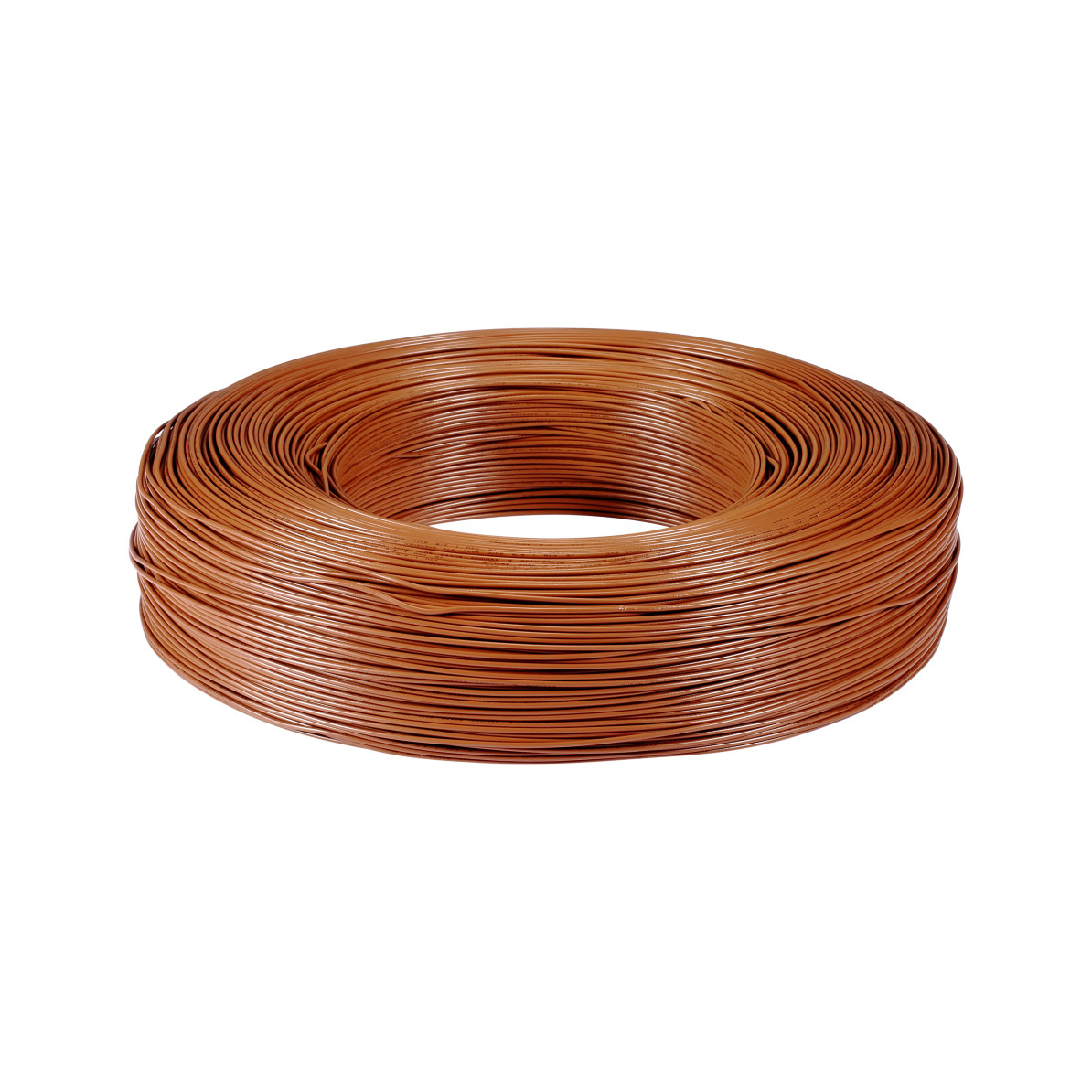

30V FEP Insulated Wire Heating Application Copper Electric Wire Multicore 1

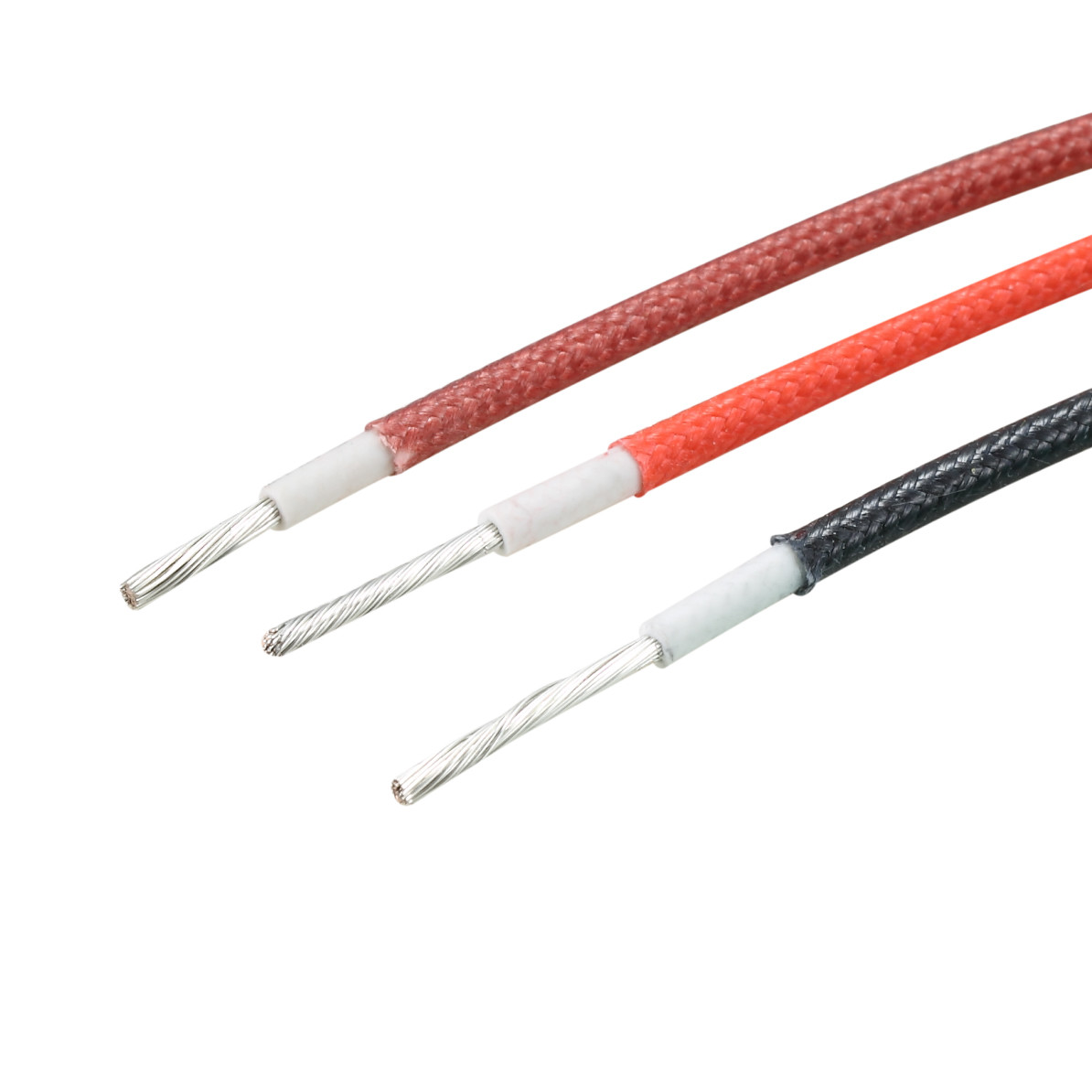

30V FEP Insulated Wire Heating Application Copper Electric Wire Multicore 2
