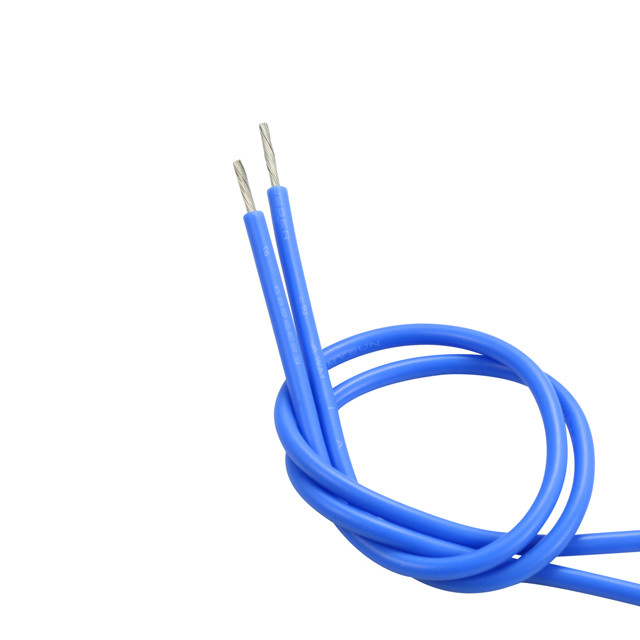

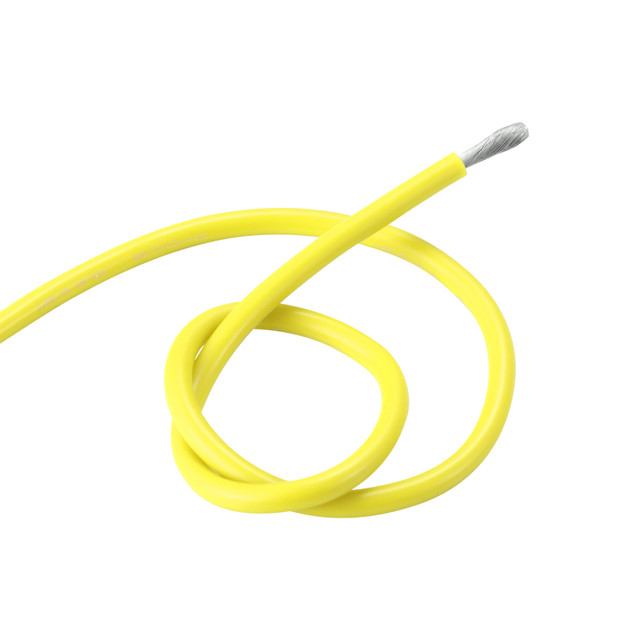

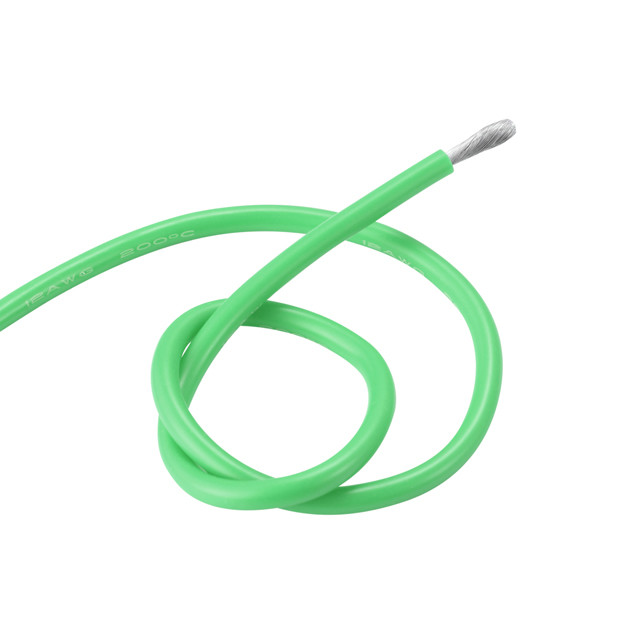

14 AWG Flexible Silicone Coated Wire UL3135 Motor Heat Resistance Cable

  • 14 AWG Flexible Silicone Coated Wire UL3135 Motor Heat Resistance Cable
  • 14 AWG Flexible Silicone Coated Wire UL3135 Motor Heat Resistance Cable
  • 14 AWG Flexible Silicone Coated Wire UL3135 Motor Heat Resistance Cable
  • 14 AWG Flexible Silicone Coated Wire UL3135 Motor Heat Resistance Cable
Place of Origin China
Brand Name mysun
Certification ul
Model Number ul3135
Minimum Order Quantity 305METER
Price 0.01 USD
Packaging Details 305M/ROLL, 610M/ROLL, CARTON 32CM*32CM*32CM
Delivery Time 7~15DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1800000 PER DAY

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MATERIAL SILICONE RUBBER WITH TINNED COPPER CONDUCTOR TINNED COPPER
STANDARD UL758 RATED VOLTAGE 600v
Rated Temperature 200C Color Customer's Requirement
Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 MOQ 305M/Roll
Advantage 22 Years Production Experience Product Name Copper Core Silicone Rubber Wire
Highlight

Silicone Flexible Heat Resistance Cable

,

Motor Silicone Coated Wire

,

UL3135 Heat Resistant Electrical Wire
Leave a Message
Product Description
Products Description
14 AWG Flexible Silicone Coated Wire UL3135 Motor Heat Resistance Cable 0
14 AWG Flexible Silicone Coated Wire UL3135 Motor Heat Resistance Cable 1
14 AWG Flexible Silicone Coated Wire UL3135 Motor Heat Resistance Cable 2
14 AWG Flexible Silicone Coated Wire UL3135 Motor Heat Resistance Cable 3
14 AWG Flexible Silicone Coated Wire UL3135 Motor Heat Resistance Cable 4
Specification Table
Conductor
Insulation
Max.Cond
Resistance
(Ω/KM)
Unit length
(M)(Ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
26
7/0.16
0.48
0.78
2.04
143
305/1000
24
7/0.20
0.61
0.78
2.17
89.3
305/1000
22
7/0.254
0.77
0.78
2.33
56.4
305/1000
20
7/0.31
0.94
0.78
2.5
35.2
305/1000
18
7/0.39
1.19
0.78
2.75
22.2
305/1000
16
7/0.49
1.49
0.78
3.05
14
305/1000
24
11/0.16
0.61
0.78
2.17
89.3
305/1000
22
17/0.16
0.76
0.78
2.32
56.4
305/1000
20
26/0.16
0.94
0.78
2.5
35.2
305/1000
18
41/0.16
1.18
0.78
2.74
22.2
305/1000
16
26/0.254
1.49
0.78
3.05
14
305/1000
14
41/0.254
1.87
0.78
3.43
8.78
305/1000
12
19/0.47
2.63
0.78
3.92
5.53
305/1000
0.30mm²
12/0.18
0.71
0.78
2.27
59.78
305/1000
0.50mm²
20/0.18
0.92
0.78
2.48
40.1
305/1000
0.75mm²
30/0.18
1.13
0.78
2.69
26.7
305/1000
1.00mm²
40/0.18
1.31
0.78
2.87
20
305/1000
1.25mm²
50/0.18
1.46
0.78
3.02
14.35
305/1000
2.00mm²
41/0.254
1.87
0.78
3.43
8.78
305/1000
2.50mm²
50/0.254
2.08
0.78
3.64
7.16
305/1000
Recommended by seller


300V silicone rubber fiberglass braiding cable 16 18 20 22 24 26 AWG silicone electric wire

$0.05 - $1.00 / Meter

305.0 Meters



Customizable Silicone Wire 14 18 20 22 24 AWG electrical flexible copper cable wire 2 4 6 8 core cable price silicone wire cable

$0.10 - $0.50 / Meter

305.0 Meters



electric wires cables 20 awg flexible UL758 wires fep cable for home appliance single core Copper electric wire

$0.01 - $0.03 / Meter

3050 Meters



UL3122 silicone rubber fiberglass braiding cable 300V Tinned copper 16awg wire silicone braid wire

$0.50 - $1.50 / Meter

305 Meters



18 20 22 24 26 AWG Gauge High Temperature Heat Resistant Solid Copper Rubber Cable Silicone Wire

$0.09 - $1.00 / Meter

305.0 Meters



The AWM5107 450C Special electrical wires with nickel-plated copper High temperature Mica wire

$0.30 - $0.80 / Meter

305 Meters

Packing
14 AWG Flexible Silicone Coated Wire UL3135 Motor Heat Resistance Cable 5
Application
14 AWG Flexible Silicone Coated Wire UL3135 Motor Heat Resistance Cable 6
FAQ
How can I contact with your company? We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile What is your working time? Monday-Saturday : 7:30AM-17:00PM (Beijing time, GMT+08.00) We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . Pls email us during our holiday if u have any question Do you provide free samples? Yes, we can provide a free sample for testing,buyer should bear all the shipping costs. What is your payment terms? T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal What is the lead time? Usually sample lead time is 7 days after payment has been confirmed.
