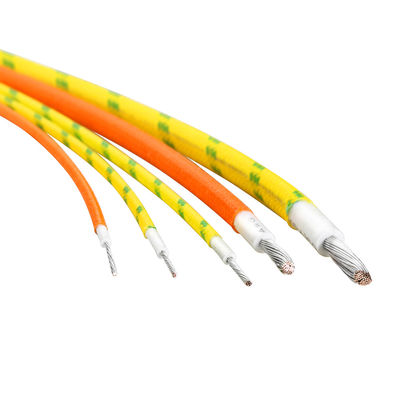

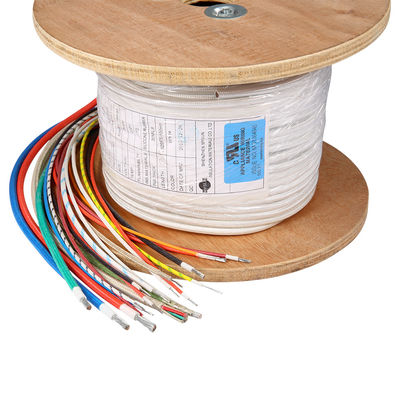

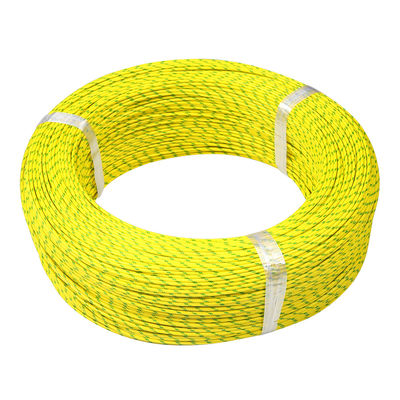

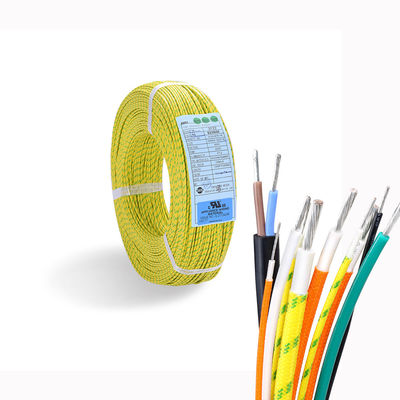

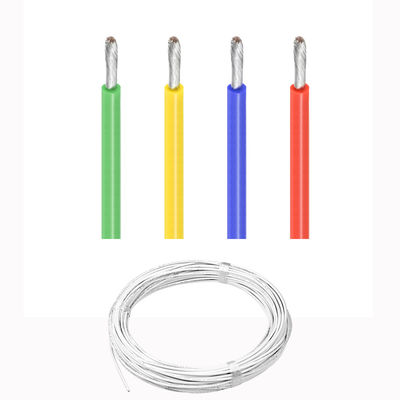

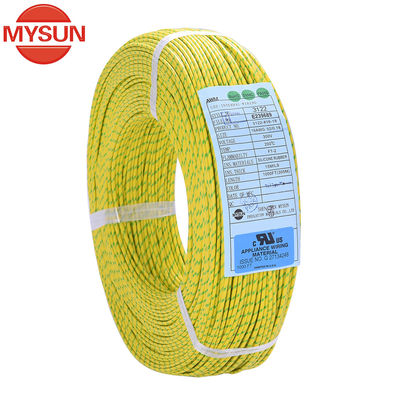

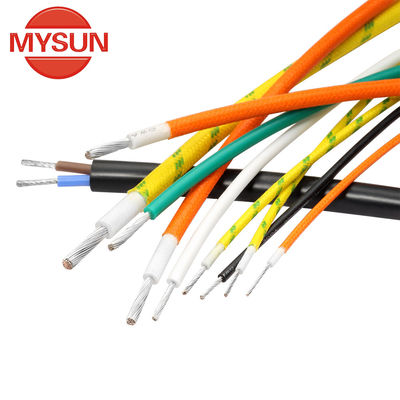

UL3122 Flexible Silicone Electrical Wire 300V Stranded Conductor Red Black White Color

  • UL3122 Flexible Silicone Electrical Wire 300V Stranded Conductor Red Black White Color
  • UL3122 Flexible Silicone Electrical Wire 300V Stranded Conductor Red Black White Color
  • UL3122 Flexible Silicone Electrical Wire 300V Stranded Conductor Red Black White Color
  • UL3122 Flexible Silicone Electrical Wire 300V Stranded Conductor Red Black White Color
  • UL3122 Flexible Silicone Electrical Wire 300V Stranded Conductor Red Black White Color
  • UL3122 Flexible Silicone Electrical Wire 300V Stranded Conductor Red Black White Color
  • UL3122 Flexible Silicone Electrical Wire 300V Stranded Conductor Red Black White Color
  • UL3122 Flexible Silicone Electrical Wire 300V Stranded Conductor Red Black White Color
Place of Origin China
Brand Name Mysun
Certification UL
Model Number UL3122
Minimum Order Quantity 1000M
Price USD0.1-2/m
Packaging Details 305m/roll,610m/roll
Delivery Time 5-10 workdays
Payment Terms T/T
Supply Ability 1 million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Insulation Material Silicone Rubber Extruded
Conductor Material Tinned Copper Type Insulated
Color Red,Black,blue,yellow,green Rated Voltage 300V
Cross Section 16awg Core Single
Packing 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll Temp Reistance 200 Degree
Insulation Fiber Glass Material Silicone+Tinned Copper+Fiber Glass
Nominal Thickness 0.6mm Marking FT2
Highlight

Flexible Silicone Electrical Wire

,

UL3122 Silicone Electrical Wire

,

Silicone Electrical Wire 300V
Leave a Message
Product Description

UL3122 flexible silicone electrical wire for electrical wire with red black white color

  • Flexibility: silicone rubber insulation with fiberglass braided sleeving
  • Maximum conductor resistance: 24.4 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: -50°C to +200°C
  • Rated voltage: 300 V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16AWG, 18 AWG, 20 AWG, and 22 AWG
  • Application:Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.



Conductor Insulation Max Cond resistance
(ohms/m)		 Unit length
(m)(F)
      3KV 6KV 10KV 20KV 30KV
Size Construction Diameter Nominal Thickness Diameter Nominal Thickness Diameter Nominal Thickness Diameter Nominal Thickness Diameter Nominal Thickness Diameter
(AWG) (NO./mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
28 7x0.12 0.37 0.50 1.37 0.70 1.77 1.00 2.37 1.30 2.97 1.70 3.77 239 610/2000
26 7x0.15 0.49 0.50 1.49 0.70 1.89 1.00 2.49 1.30 3.09 1.70 3.89 150 610/2000
24 14x0.14 0.60 0.50 1.60 0.70 2.00 1.00 2.60 1.30 3.20 1.70 4.00 94.2 610/2000
22 22x0.14 0.76 0.50 1.76 0.70 2.14 1.00 2.76 1.30 3.36 1.70 4.16 59.4 305/1000
20 32x0.14 0.91 0.50 1.91 0.70 2.31 1.00 2.91 1.30 3.50 1.70 4.31 36.7 305/1000
18 52x0.14 1.17 0.50 2.17 0.70 2.57 1.00 3.17 1.30 3.77 1.70 4.57 23.2 305/1000
16 52x0.18 1.50 0.50 2.50 0.70 2.90 1.00 3.50 1.30 4.10 1.70 4.90 14.6 305/1000

UL3122 Flexible Silicone Electrical Wire 300V Stranded Conductor Red Black White Color 0



OUT PRODUCTION

UL3122 Flexible Silicone Electrical Wire 300V Stranded Conductor Red Black White Color 1

ABOUT US

.Our company specializing in insulation wires and cables for 22 years,we’d like to introduce this item for you,and its further have silicone,(FEP,PFA)XLPE ,PVC,XLPVC s,High temperature insulation tubing wires and cable.Our products had adopted ISO9000,ISO14001,IATF16949 Quality System Authorities with UL.CUL ,CCC,VDE,CSA certificate.

UL3122 Flexible Silicone Electrical Wire 300V Stranded Conductor Red Black White Color 2

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FQA

1. Are you a manufacturer?
A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;
and have 20 years leading experience in manufacturing wires.

2. What are your main products?
A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.

3.What certification did your products pass?
A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
