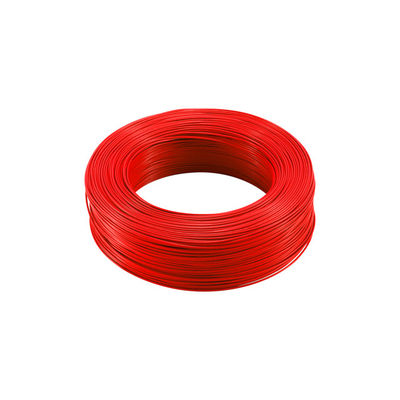

High Voltage Flexible 20AWG 22AWG 24AWG 26AWG UL3141 Silicone Rubber Insulated Wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 600V | Rated Temperature | 150℃ |
|---|---|---|---|
| Conductor | Tinned Copper | Insulation | Silicone Rubber |
| Certification | ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 | Application | Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products. |
| Color | Customized | Size | 20-26awg |
| Name | Flexible Cable | Flame Test | FT-2 |
| Highlight | silicone rubber insulated cable,high temperature heater wire |
||
Product Description
high voltage flexible UL 3141 Silicone Rubber Insulated Wire tinned copper wire
specifications
| Retad voltage | 600V |
| Retad temperature | 150°C |
| Insulation | silicone rubber |
| Conductor | tinned copper wire |
| Standards | UL 758 |
| Application | home appliances/ leds/industrial machine |
| Size | awg20,22,24,26 |
| M/FT | 305/1000 |
| Color | white,black,red,brown,yellow,blue,green,transparent etc. |
product dimensions
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | (Ω/KM) | (M)(Ft) |
| 26 | 7/0.16 | 0.48 | 1.60 | 3.68 | 143 | 200/656 |
| 24 | 7/0.20 | 0.61 | 1.60 | 3.81 | 89.3 | 200/656 |
| 22 | 7/0.254 | 0.77 | 1.60 | 3.97 | 56.4 | 200/656 |
| 20 | 7/0.31 | 0.94 | 1.60 | 4.14 | 35.2 | 200/656 |
benifits of silicone rubber insulated cables
Silicone rubber insulated cables have outstanding thermal range with some suitable for high temperatures
up to 200oC and lows down to -90°C. Silicone rubber cables also have excellent flexibility. Whilst silicone
rubber insulation doesn’t offer the same mechanical toughness and cut-through resistance when compared
to most other elastomers, this can be compensated for with the addition of a glass fibre braid and silicone varnish.
The mineral nature of silicone rubber insulation makes the silicone cables uniquely suitable for fire resistant cables
required to maintain circuit integrity in the event of a fire. When the cable is in a fire situation a film of fused silica is
deposited onto the conductor providing substantial insulation properties. The addition of specialist additives can
enhance the strength of this fused silica around the conductor. Silicone cables are LSZH - low smoke zero halogen
materials - an additional benefit that makes them particularly suitable for fire situations.
Silicone insulation also has good oil and solvent resistance, and good corona, and ozone and weathering resistance.
Industrial Applications that Use Silicone Insulated Wires
Silicone insulated wires are used for a variety of industrial applications due to the above mentioned advantageous properties.
The below mentioned industrial applications make the best use of these insulated wires.
Internal Wiring of Home Appliances and Industrial Applications:
Silicone insulated wires are ideal for flexible applications, and is used for internal wiring of industrial heating appliances,
hot-rolling mills, textile machines, industrial ovens, etc.
High Voltage Cable Assemblies:
Today, many cable assembly manufacturers prefer using silicone cables over regular cheap cable assemblies.
Additionally, these wires have a dielectric strength of 550vpm, high insulation resistance, and excellent dielectric
constant of 3-3.5. These characteristics make these wires good electrical insulators, and are ideal for high voltage
cable assemblies as well.
RoHS Compliant Applications:
As silicone rubber is a non-toxic substance, it is ideal for RoHS compliant a
pplications. This is also the reason why silicone insulated wires are used in various medical applications.
our company
workshop
package
Service:
Shipment:
1. by express
2. by sea
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
