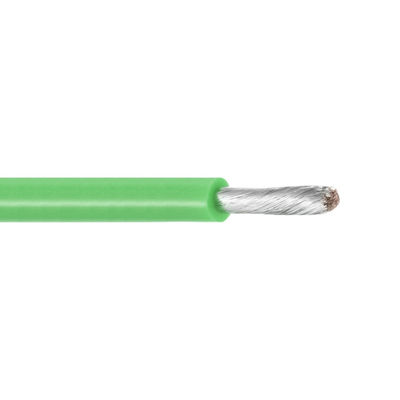

High Temp Silicone Rubber Insulated Wire Flexible UL3241 Moisture Proof

  • High Temp Silicone Rubber Insulated Wire Flexible UL3241 Moisture Proof
  • High Temp Silicone Rubber Insulated Wire Flexible UL3241 Moisture Proof
  • High Temp Silicone Rubber Insulated Wire Flexible UL3241 Moisture Proof
  • High Temp Silicone Rubber Insulated Wire Flexible UL3241 Moisture Proof
Place of Origin China
Brand Name MYSUN
Certification UL
Model Number UL3241
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 300V Rated Temperature 200℃
Conductor Nickel-plated Or Silver Plated Copper Wire Insulation Silicone Rubber
Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 Application Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products.
Color Customized Size 14-26awg
Name Lead Wire, Hook Up Wire
Highlight

silicone rubber insulated cable

,

heat resistant electrical cable
Leave a Message
Product Description



high voltage UL 3241 Silicone Rubber Insulated Wire tinned copper wire



specifications

Retad voltage 300V
Retad temperature 200°C
Insulation silicone rubber
Conductor nickel-plated or silver plated copper wire
Standards UL 758
Application home appliances/ leds/industrial machine
M/FT 305/1000
SIZE 14-26awg
Color white,black,red,brown,yellow,blue,green,transparent etc.



product dimensions

CONDUCTOR INSULATION MAX.COND RESISTANCE UNIT LENGTH(M)(Ft)
SIZE(AWG) CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm) DIAMETER (Ω/KM)
(mm)
26 7/0.16 0.48 0.79 2.06 143 610(2000)
24 7/0.20 0.61 2.19 89.3
22 7/0.254 0.77 2.35 56.4 305(1000)
20 21/0.18 0.92 2.5 35.2
18 16/0.254 1.19 2.77 22.2
16 26/0.254 1.49 3.07 14
14 41/0.254 1.87 3.45 8.78 153(500)



Factors to Consider When Selecting Silicone Wires
The functioning of silicone high voltage wires greatly affects the functioning of the application.

Hence, the features of the wires need to support the demands of an application:

  • The wires should function seamlessly through extreme temperatures of the range of -55 °C and 200 °C.
  • The wires are coated with an insulation material that keeps the wire functioning even at high temperatures and voltages.
  • These wires are extremely tough and flexible.
  • The wires can be braided with a tough exterior material to make them resistant to abrasion. Generally, the material used makes the wires resistant to ozone, sunlight, and corona.

It is also important to ensure that the wires display the following features:

  • Good dielectric properties
  • Low coefficient of friction
  • Heat resistance
  • Flame resistant/ retardant
  • Extremely durable
  • Resistant to fungus and mold
  • Correct AWG compatibility with the application
  • Material should be compatible with adhesives used in the application

company information

Shenzhen Mysun Insulation Materials Co.Ltd. is a comprehensive enterprise integrated with manufacture,

distribution and trade.Wespecialize in production of all sorts of wire of high temperature and connecting

which have been subjected to tests of UL,cUL,VDE,CE,CCC,SGS and TUV,and supply enterprises such

as home appliance,electronics,lighting,medical unit,communication and office equipment with connecting

wiring harness and processing service.



With the development and devote us into special materials field as an expert, our product lines are

now covering:



1) FEP/PFA/ETFE/PTFE wires;

2) Silicone rubber wires;

3) XLPE wires;

4) Special electrical wires;

5) PVC&XLPVC wires;

6) High temperature insulation tubing;

7) wiring harnesses.



"Quality is guarantee forexistence" is the guideline the the company always upholds.To realize own value

and servethe society is our target and also our advancing power.



High Temp Silicone Rubber Insulated Wire Flexible UL3241 Moisture Proof 0

High Temp Silicone Rubber Insulated Wire Flexible UL3241 Moisture Proof 1



High Temp Silicone Rubber Insulated Wire Flexible UL3241 Moisture Proof 2

Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
