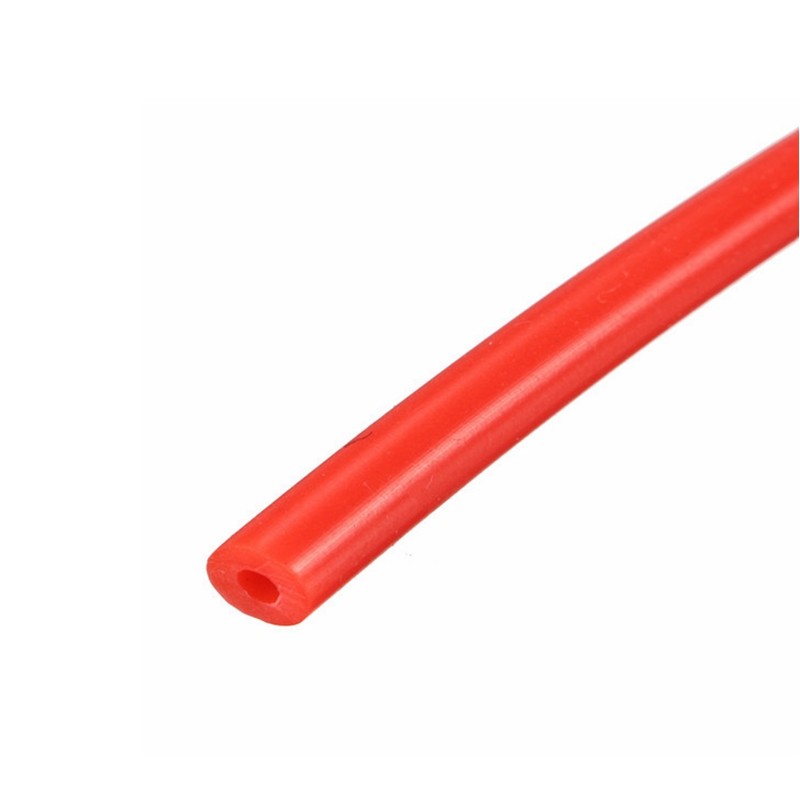

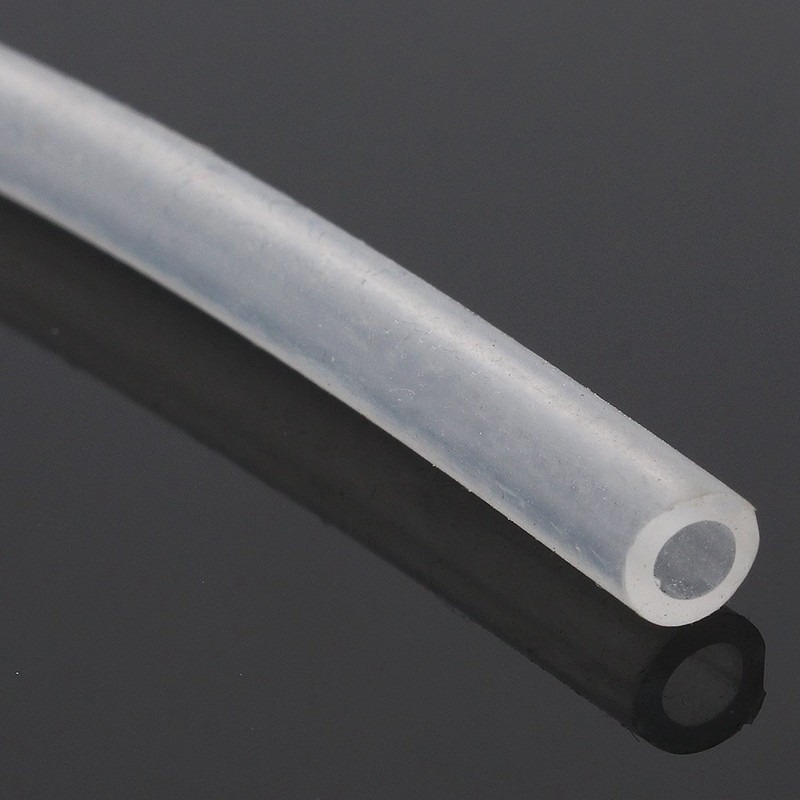

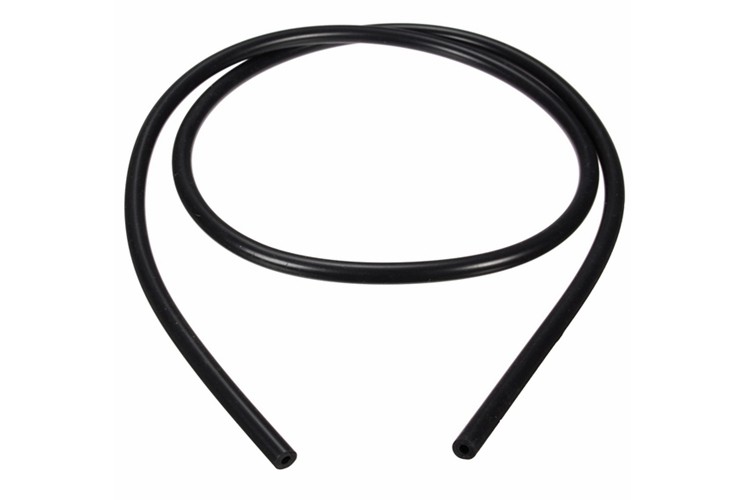

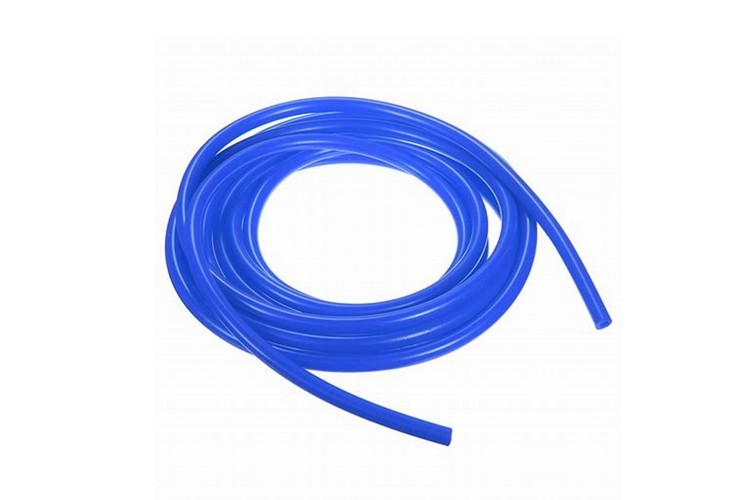

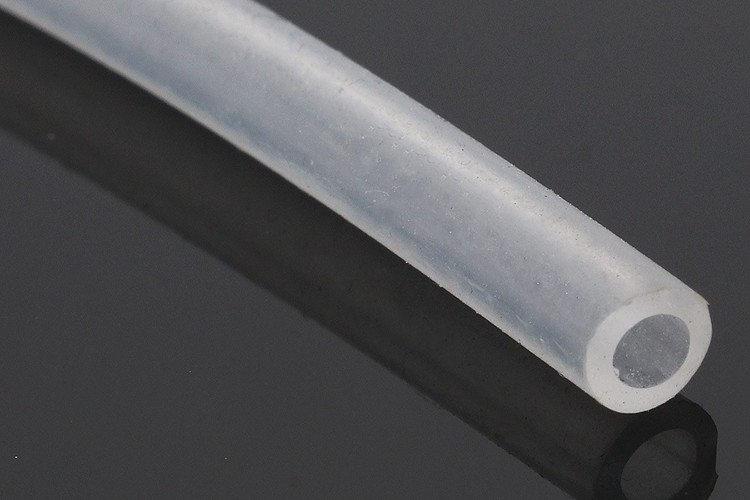

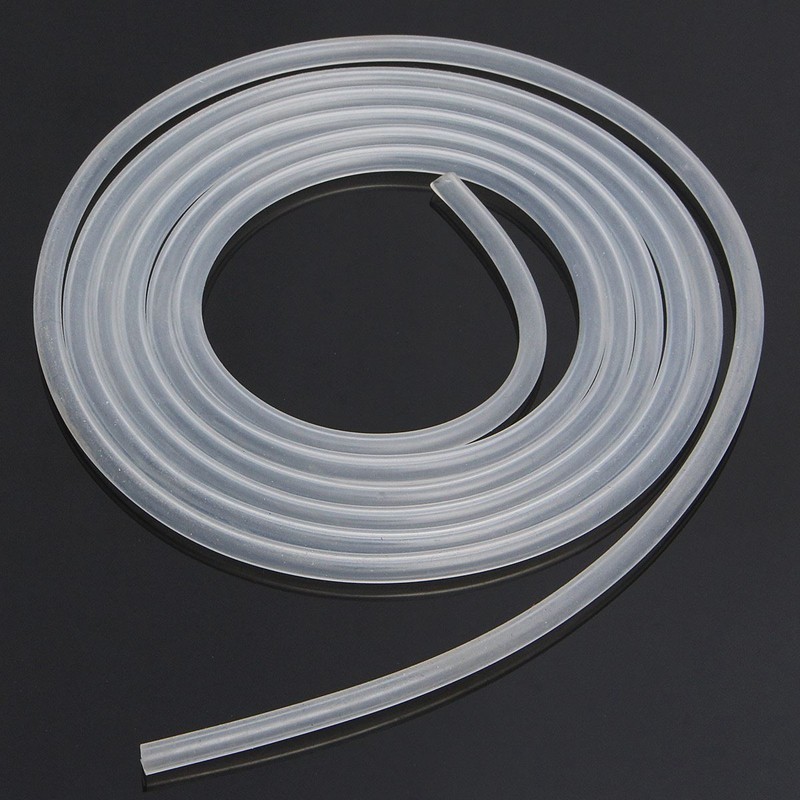

High Temperature resistance Flexible Tubing 600V UL1441 standard
Place of Origin | Guangdong ,China |
---|---|
Brand Name | MYSUN |
Certification | UL1441/FDA |
Model Number | S.R. tubing |
Minimum Order Quantity | 1000M |
Price | USD 0.02-0.8/M |
Packaging Details | 100M/roll |
Delivery Time | 7-15working days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 50000meters per day |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | S.R. Tubing | Rated Voltage | 600V |
---|---|---|---|
Rated Temperature | 200°C | Applications | Medical Equipment |
Inside Diameter | 0.5-10mm | Color | White Transparent Black Red |
Insulation | Silicone Rubber | Package | Customerized |
Certificates | UL Certification | Unit Length | 200M/100M/50M |
Highlight | 200m High Temperature Flexible Tubing,UL1441 High Temperature Flexible Tubing,600V Silicone Rubber Tubing |
High temperature insulated S.R.Tubing
Specifications:
Nominal voltage: 600V
Temperature range: 200℃
Standard: UL1441/FDA
Insulation: silicone rubber
Product features:
S.R Tubing has excellent resistance to high temperature, low temperature resistance, high voltage resistance, aging resistance, long service life and soft and easy to install.Widely used for varieties of lighting,home appliance,medical equipment,food and beverage,etc.
Products demesion:
Size(mm) | Wall thickness(mm) | Unit Length(M) | ||||
Inside diameter | Tolerance | 2.5KV | 4.0KV | 6.0KV | 7.0KV | |
0.5 | +0.2/-0.2 | 0.50 | 1.00 | 1.50 | 2.00 | 200.00 |
1.0 | +0.2/-0.2 | 0.50 | 1.00 | 1.50 | 2.00 | 200.00 |
1.5 | +0.4/-0.2 | 0.50 | 1.00 | 1.50 | 2.00 | 200.00 |
2.0 | +0.4/-0.2 | 0.50 | 1.00 | 1.50 | 2.00 | 100.00 |
2.5 | +0.4/-0.2 | 0.50 | 1.00 | 1.50 | 2.00 | 100.00 |
3.0 | +0.4/-0.2 | 0.50 | 1.00 | 1.50 | 2.00 | 100.00 |
3.5 | +0.4/-0.2 | 0.50 | 1.00 | 1.50 | 2.00 | 100.00 |
4.0 | +0.6/-0.3 | 0.50 | 1.00 | 1.50 | 2.00 | 100.00 |
4.5 | +0.6/-0.3 | 0.50 | 1.00 | 1.50 | 2.00 | 100.00 |
5.0 | +0.6/-0.3 | 0.50 | 1.00 | 1.50 | 2.00 | 100.00 |
6.0 | +0.8/-0.4 | 0.50 | 1.00 | 1.50 | 2.00 | 100.00 |
7.0 | +0.8/-0.4 | 0.50 | 1.00 | 1.50 | 2.00 | 100.00 |
8.0 | +0.8/-0.4 | 0.50 | 1.00 | 1.50 | 2.00 | 50.00 |
9.0 | +1.0/-0.5 | 0.50 | 1.00 | 1.50 | 2.00 | 50.00 |
10.0 | +1.0/-0.5 | 0.50 | 1.00 | 1.50 | 2.00 | 50.00 |
1. by express
2. by sea
LC, TT, Western Union, Money Gram and PayPal
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
1. Are you a manufacturer?
A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;
and have 20 years leading experience in manufacturing wires.
2. What are your main products?
A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.
3.What certification did your products pass?
A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
